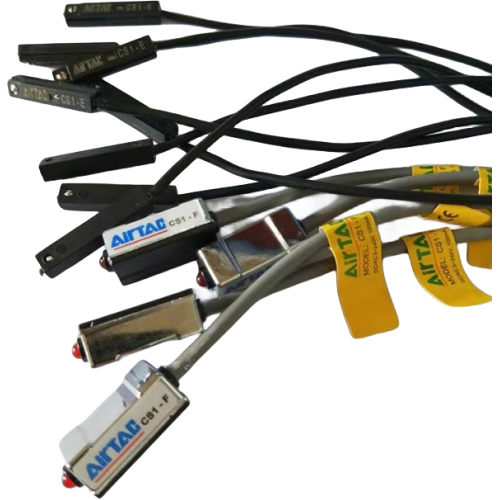

Airtac CS1F Reed Sensor CS1F040
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F Reed Sensor CS1F040 Technical Specifications
- Model: CS1F040
- Type: Magnetic reed proximity sensor (Non-contact)
- Detection method: Magnetic field actuation
- Output configuration: NPN normally open (NO)
- Operating voltage: 5-240V DC/AC (10-250V for AC models)
- Current capacity: ≤200mA
- Response frequency: ≤3000Hz
- Inductive distance: 0-40mm (cylinder magnet Ø18×8mm)
- Protection rating: IP67 (dust/water resistant)
- Housing material: Nickel-plated brass + PBT
- Contact material: AgCdO (silver cadmium oxide)
- Temperature range: -25℃ to +70℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
- Weight: 28g ±0.5g
- Dimensions: 60mm(L) × 12.5mm(W) × 18mm(H)
- Cable length: Standard 2m PVC cable (optional 5/10m)
Compact magnetic proximity switch designed for precise cylinder position detection in harsh environments. Features contactless operation with zero mechanical wear, capable of detecting pneumatic cylinder pistons through non-ferrous materials. The dual-color LED (red/green) provides visual status feedback.
- Pneumatic cylinder end position detection
- Automated packaging line sequencing
- Injection molding machine safety interlocks
- Conveyor system object counting
- Hydraulic press stroke monitoring
Installation guidelines:
Mount parallel to cylinder axis with 0.5-2mm air gap. Use M5×0.8 mounting screws
(max torque 1.2N·m). For optimal performance, align sensor centerline with magnet
midpoint. Avoid proximity to strong electromagnetic sources.
