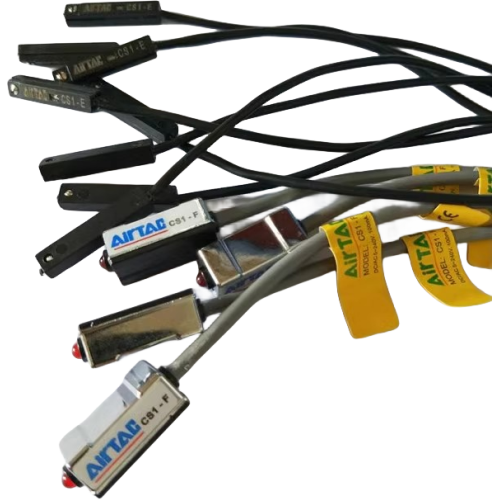

Airtac CS1F Reed Sensor CS1F050
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F Reed Sensor CS1F050 Technical Specifications
- Model: CS1F050
- Type: Non-contact magnetic reed switch
- Operating voltage: 5-30V DC (±10% ripple)
- Output type: NPN open collector (NO)
- Max current: 200mA (short-circuit protected)
- Response frequency: 0-5kHz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC60529)
- Temperature range: -25℃ to +80℃ (no icing)
- Housing material: Glass-filled PBT (UL94 V-0)
- Cable specs: 2m PVC cable, Ø4.5mm, 3-core shielded
- Weight: 48g ±2g (excluding cable)
- Dimensions: 50mm(L) × 20mm(W) × 10.5mm(H)
- Mounting torque: 0.8N·m max
- Certifications: CE, RoHS, REACH compliant
High-precision magnetic proximity sensor with overcurrent protection, designed for pneumatic cylinder position detection. Features shock-resistant construction with reverse polarity protection and LED status indication. The hermetically sealed reed switch ensures >10 million operations at rated load.
- Pneumatic cylinder end-position detection in packaging lines
- Tooling machine safety interlocks
- Automated conveyor system object counting
- Elevator door position verification systems
- Mobile hydraulic equipment limit sensing
Mounting guidance:
Install with sensing face within 2mm parallel alignment to cylinder magnet.
Maintain 10mm clearance from ferrous metals. Use M5×0.8 mounting screws
with maximum 0.3mm panel thickness. For multi-sensor arrays, maintain
≥30mm spacing between units.
