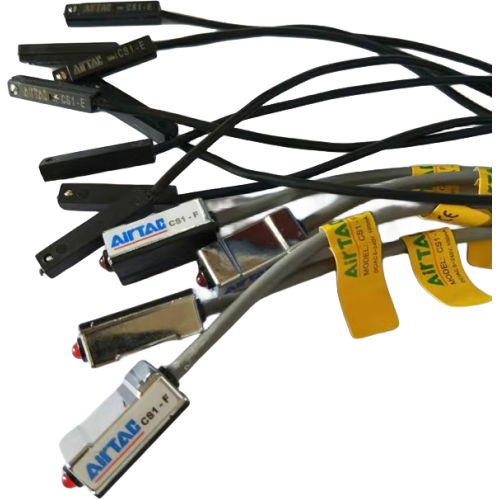

Airtac CS1F Reed Sensor CS1FC08
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F Reed Sensor CS1FC08 Technical Details
- Model: CS1FC08
- Type: Reed switch (non-contact magnetic detection)
- Detection method: Cylinder piston position sensing
- Wiring: 2-wire (NPN/PNP variants available)
- Voltage range: DC 5-240V (±10%)
- Current consumption: ≤8mA
- Response frequency: ≤1kHz
- Contact capacity: 0.5A @ 125VAC/250VAC
- Housing material: Glass fiber reinforced PA66
- Seal material: Nitrile rubber (NBR)
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Cable length: 2m standard (4/6m optional)
- Weight: 32g ±2g
- Dimensions: 50mm(L) × 10mm(W) × 10mm(H)
Compact magnetic proximity sensor designed for pneumatic cylinder position feedback. Features dual-color LED status indication (red/green) and reverse polarity protection. Operates without physical contact, using magnetic field changes from cylinder piston magnets for reliable position detection.
- Automated packaging line cylinder end-position detection
- Injection molding machine clamp position feedback
- Conveyor system actuator monitoring
- Automotive assembly jig position verification
- Food processing equipment safety interlocks
Mounting guidance:
Install parallel to cylinder axis with ≤1mm gap between sensor and magnet carrier.
Optimal detection distance: 4-6mm from magnet surface. Avoid metallic debris accumulation.
- Requires compatible magnetic piston (D-M9N series recommended)
- Max switching frequency decreases at higher temperatures
- Not suitable for hydraulic applications
