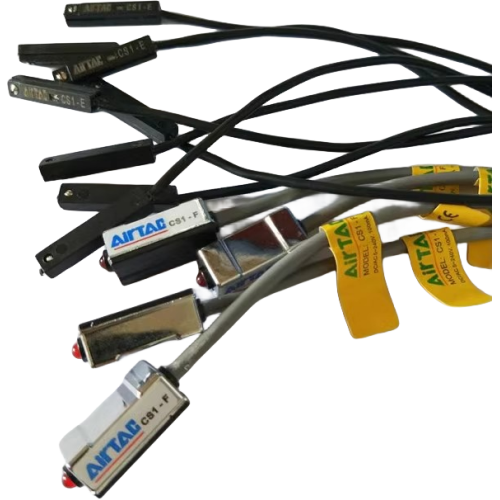

Airtac CS1F Reed Sensor CS1FC12
This elegantly simple design delivers dependable circuit control across a wide range of industrial and commercial equipment applications, demonstrating exceptional reliability in electrical switching operations.
AirTAC CS1F Reed Sensor CS1FC12 Technical Specifications
- Model: CS1FC12
- Type: Reed switch proximity sensor (non-contact magnetic detection)
- Detection method: Magnetic field actuation via permanent magnet
- Effective sensing distance: 8mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: 10-30V DC (±10% ripple)
- Current capacity: ≤200mA (resistive load)
- Voltage drop: ≤2V @ 200mA
- Response time: ≤1ms
- Hysteresis: ≤15% of sensing distance
- Connection type: 2m PVC cable (3-core 0.2mm²)
- Protection class: IP67 (IEC 60529)
- Housing material: Glass-filled PBT (UL94 V-0)
- Operating temperature: -25℃ to +70℃ (no icing)
- Storage temperature: -40℃ to +85℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 100m/s² (3-axes, 11ms duration)
- Electrical life: 10⁷ operations @ rated load
- Weight: 50g ±3% (excluding cable)
- Dimensions: 40mm(L) × 16mm(W) × 8mm(H)
- Certifications: CE, RoHS, REACH compliant
Compact magnetic proximity sensor featuring hermetically sealed reed contacts for reliable position detection in contaminated environments. The oil-resistant construction and reinforced cable gland provide exceptional durability against mechanical stress and hydraulic fluid exposure. Designed for synchronous output signaling with moving components without physical contact.
- Cylinder piston position feedback in pneumatic systems
- Conveyor belt package counting systems
- Safety door interlock detection in automated machinery
- Elevator car position verification
- Agricultural equipment stroke limit detection
Installation guidelines:
Mount sensor parallel to magnet movement path with ≤0.5mm axial misalignment.
Maintain 6-10mm air gap between sensor face and magnet surface. Avoid ferrous
materials within 20mm detection zone. For optimal performance in high-vibration
environments, use M3 mounting screws with 0.4-0.6Nm torque.
- Use shielded cables for EMI-sensitive environments
- Install surge suppressor for inductive loads exceeding 50VA
- For submerged applications, seal cable entry with PG7 gland nut
