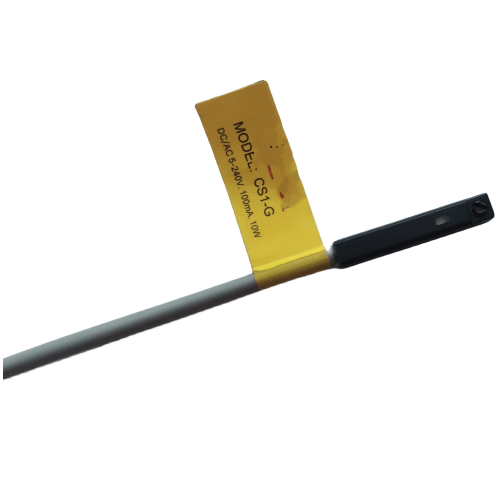

Airtac CS1G Reed Sensor CS1G020
$10.45
Regular price
$17.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1G020
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The CS1G Reed Sensor utilizes a magnet or electromagnet to generate a magnetic field, which actuates or deactivates the integrated reed switch within the sensor.
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
Installation guidelines:
Mount parallel to cylinder axis with ≤0.5mm gap between sensor face and magnet.
Use M3 screws (1.2-1.5N·m torque). Maintain 10mm clearance from ferrous materials.
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Reed Sensor CS1G020 Technical Specifications
- Model: CS1G020
- Sensor type: Reed switch (magnetic proximity)
- Operation mode: Normally open (NO)
- Supply voltage: DC 5-30V (non-polarized)
- Current consumption: ≤10mA
- Output type: 2-wire DC
- Detection distance: 0-20mm (cylinder magnet Ø18×8mm)
- Response frequency: ≤100Hz
- Hysteresis: ≤15% of detection distance
- Protection rating: IP67 (dust/water resistant)
- Contact capacity: 200mA residual current
- Ambient temperature: -25℃ to +70℃
- Housing material: Glass-filled PBT (30% GF)
- Cable length: 2m standard (4-core shielded)
- Weight: 32g ±2g
- Dimensions: 40mm(L) × 10mm(W) × 20mm(H)
- Certifications: CE, RoHS compliant
Non-contact magnetic sensor with hermetically sealed reed switch, designed for precise position detection in pneumatic cylinders. Features overcurrent protection and reverse polarity immunity. The shielded cable provides EMI resistance in industrial environments.
Typical Applications:
- Pneumatic cylinder end position detection
- Automatic door locking systems
- Injection molding machine safety interlocks
- Conveyor belt package counters
- Elevator car leveling verification
Installation guidelines:
Mount parallel to cylinder axis with ≤0.5mm gap between sensor face and magnet.
Use M3 screws (1.2-1.5N·m torque). Maintain 10mm clearance from ferrous materials.
| Property | Property Value |
|---|---|
| sku | CS1G020 |
