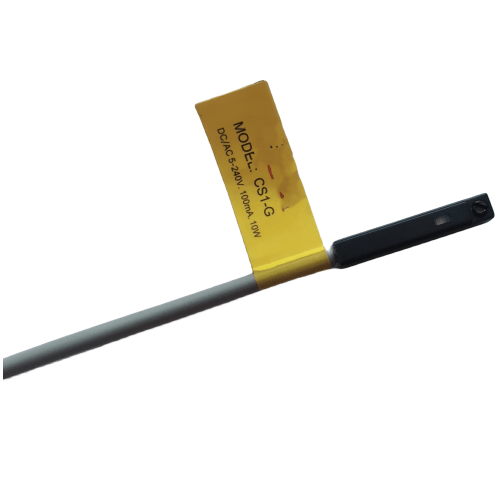

Airtac CS1G Reed Sensor CS1G030
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Series Reed Sensor CS1G030 Technical Details
- Model: CS1G030
- Type: Non-contact magnetic reed sensor
- Detection method: Magnetic field actuation (cylinder piston detection)
- Detection distance: 3.0±0.5mm
- Output type: NPN normally open (NO) or PNP configurable
- Supply voltage: 5-30V DC (wide voltage)
- Current consumption: ≤15mA
- Housing material: PA66+GF25 (oil/chemical resistant)
- Contact rating: 100mA max (resistive load)
- Protection class: IP67 (dust/water resistant)
- Temperature range: -25℃ to +85℃
- Cable length: 2m standard (shielded 4-core 28AWG)
- Connector: M8 4-pin quick-disconnect (IEC 61076-2-104)
- Repeat accuracy: ±0.1mm
- Response frequency: ≤2000Hz
- Mechanical life: >10 million operations
- Weight: 32g ±1g (sensor body only)
- Dimensions: 45mm(L) × 15mm(W) × 15mm(H)
High-precision magnetic proximity switch designed for pneumatic cylinder position detection. Features reinforced stress-relief cable entry and overvoltage protection circuitry. LED status indicator (green=power, red=activation) enables quick diagnostics. Compatible with ISO cylinder mounts.
- Pneumatic cylinder end-position feedback in packaging lines
- Cartesian robot axis limit detection
- Injection molding machine clamp position sensing
- Automotive assembly tooling safety interlocks
- Conveyor system pallet presence verification
Mounting guidance:
Maintain 0.5-1.5mm air gap between sensor face and cylinder wall.
Use non-ferromagnetic mounting brackets to prevent interference.
Maximum lateral offset tolerance: 20% of sensor diameter.
