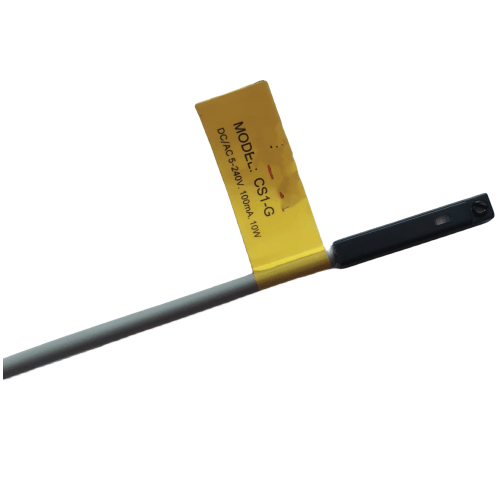

Airtac CS1G Reed Sensor CS1G040
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Reed Sensor CS1G040 Technical Specifications
- Model: CS1G040
- Type: Magnetic reed proximity sensor (NO type)
- Detection distance: 4mm ±10%
- Operating voltage: DC12-24V (±10% pulsating P-P 10% max)
- Output configuration: NPN open collector
- Current consumption: ≤13mA
- Contact capacity: 200mA (resistive load)
- Response frequency: ≤3kHz
- Housing material: Glass fiber reinforced ABS
- Protection rating: IP67 (IEC standard)
- Operating temp: -25℃ to +70℃ (no icing)
- Storage temp: -30℃ to +80℃
- Lead wire length: 2m standard (customizable)
- Wire specification: 18AWG PVC insulated cable
- Weight: 50g ±2g
- Dimensions: 50mm(L) × 18mm(W) × 8.5mm(H)
Non-contact magnetic detection sensor with sealed construction, designed for precise position feedback in pneumatic cylinders. Features gold-plated reed contacts for enhanced durability (100 million operations minimum). The compact profile enables installation in confined spaces without interference with moving parts.
- Pneumatic cylinder end position detection
- Injection molding machine clamp monitoring
- Automated conveyor system sorting gates
- Packaging machine stroke control
- Robotic arm position verification
Installation guidelines:
Mount parallel to cylinder axis with ≤0.5mm vertical tolerance.
Maintain 3-5mm gap between sensor face and magnet carrier.
Avoid proximity to strong electromagnetic fields (>80kA/m).
For cylinder barrels, use recommended AlNiCo magnets (Grade 5 or higher).
