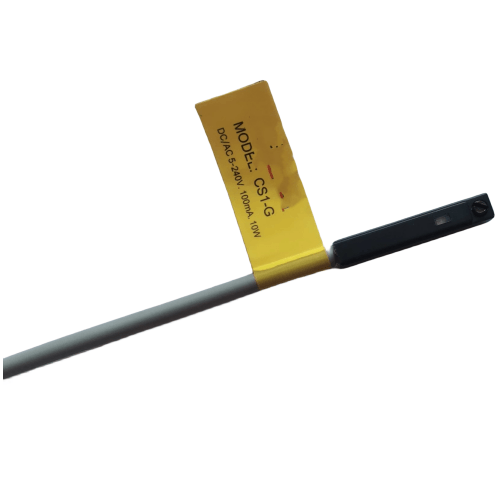

Airtac CS1G Reed Sensor CS1G100
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G100 Reed Sensor Technical Details
- Model: CS1G100
- Type: Non-contact magnetic reed sensor
- Sensing distance: 0-15mm (adjustable)
- Operating voltage: 10-30V DC ±10%
- Output type: NPN normally open (NO)
- Current consumption: ≤15mA
- Response frequency: ≤2000Hz
- Hysteresis: ≤10% of sensing distance
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT (UL94 V-0)
- Contact rating: 100mA residual current
- Wire specification: 2m PVC cable (standard), 4-conductor 0.2mm²
- Weight: 28g ±1g
- Dimensions: 18mm(W) × 6.5mm(D) × 15mm(H)
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +85℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
High-precision magnetic proximity sensor featuring shock-resistant construction and zero mechanical wear operation. The CS1G100's dual-color LED (red/green) provides visual status feedback, while its gold-plated reed contacts ensure stable signal transmission in humid environments. Designed for ISO cylinder groove mounting with T-slot compatibility.
- Pneumatic cylinder position feedback in assembly lines
- Overstroke detection for injection molding machines
- Tool positioning in CNC automation systems
- Safety interlocks for robotic workcells
- Material handling equipment limit sensing
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm clearance between magnet and sensing face.
Use shielded cables for EMI-prone environments. Maintain 10mm spacing between adjacent sensors
to prevent magnetic interference. For optimal performance, clean sensing surfaces monthly with
isopropyl alcohol.
