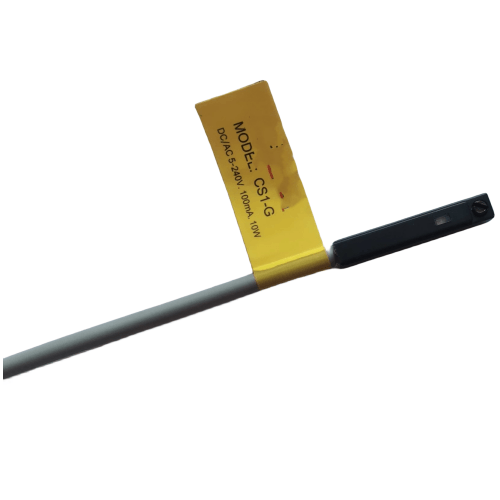

Airtac CS1G Reed Sensor CS1GX020
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1GX020 Reed Proximity Sensor Technical Details
- Model: CS1GX020 (CS1G Series)
- Sensor type: Magnetic reed switch (non-contact)
- Detection distance: 0-20mm ±10% (adjustable)
- Operating voltage: DC12-240V (10-250V AC/DC auto-sensing)
- Current consumption: ≤1.5mA (DC), ≤2VA (AC)
- Output configuration: 2-wire normally open (NO)
- Contact capacity: 200mA max @ 250V AC/DC
- Response frequency: ≤100Hz
- Protection rating: IP67 (dust/water resistant)
- Housing material: PBT + Glass fiber (UL94 V-0)
- Operating temp: -25℃ to +70℃ (no icing)
- Weight: 28g ±1g (sensor only)
- Dimensions: 78mm(L) × 10mm(W) × 18mm(H)
- Cable length: 2m standard (shielded 4-core 24AWG)
Compact magnetic proximity switch with gold-plated reed contacts for reliable position detection in pneumatic cylinders. Features wide voltage compatibility and surge protection up to 1.5kV. Built-in LED status indicator (red) for real-time monitoring. Compatible with ISO 21287 standard cylinder mounting.
- Embedded in cylinder slots (T-slot compatible)
- End-of-stroke detection in automated assembly lines
- Material handling equipment position feedback
- Elevator door position verification systems
- Medical device actuation monitoring
Mounting guide:
Align sensor centerline with cylinder magnet ring. Maintain 0.5-1mm gap between sensor and cylinder surface.
Use M3×8mm screws (0.5Nm torque max) for secure mounting. Avoid proximity to strong electromagnetic sources.
