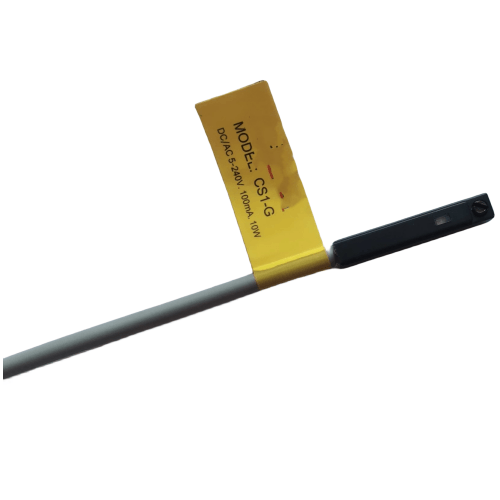

Airtac CS1G Reed Sensor CS1GX050
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1GX050 Reed Sensor Technical Details
- Model: CS1GX050
- Type: Magnet-inducted reed switch (non-contact)
- Detection method: Magnetic field actuation
- Operating voltage: DC 10-30V (±10% ripple)
- Output configuration: NPN normally open / PNP selectable
- Detection distance: 5mm ±10% (from sensor face to magnet surface)
- Current consumption: ≤15mA
- Response time: ≤1ms
- Housing material: Glass-filled PBT (UL94 V-0 rated)
- Contact material: Rhodium-plated tungsten contacts
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +80℃ (operating), -40℃ to +85℃ (storage)
- Vibration resistance: 10-55Hz, 1.5mm double amplitude
- Shock resistance: 1000m/s² (3-axes)
- Cable specification: 2m PUR oil-resistant cable, Ø4.5mm
- Weight: 32g ±1g (including cable)
- Dimensions: 18mm(W) × 18mm(D) × 40mm(H)
- Mounting thread: M8 × 1.0
High-precision magnetic proximity sensor with dual-output configuration, engineered for pneumatic cylinder position detection. Features military-grade hermetic sealing with nitrogen-filled glass tube switch for arc suppression. The anti-phase connection protection design prevents damage from reverse polarity.
- Pneumatic cylinder end-position feedback in automated assembly lines
- Material handling equipment position verification
- Safety interlock systems on injection molding machines
- Hydraulic press stroke limit detection
- Elevator door position sensing in harsh environments
Installation protocol:
Mount coaxially with cylinder's magnetic piston ring at ≤0.5mm air gap.
Use non-ferromagnetic mounting brackets. Perform magnetic null-point
calibration after installation. Avoid parallel runs with high-voltage
cables (>100V).
