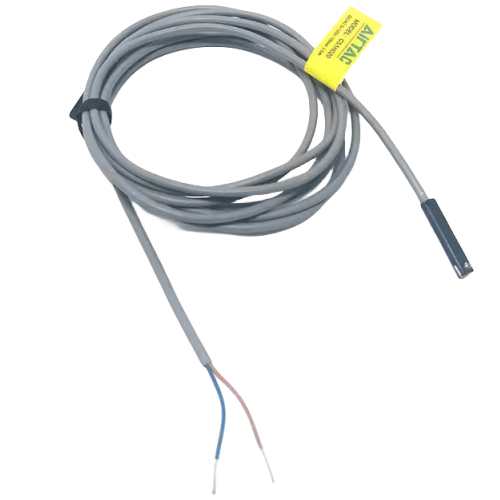

Airtac CS1H Reed Sensor CS1H030
1. This sensor utilizes permanent magnets or electromagnets to generate a magnetic field that actuates/deactuates a hermetically sealed reed switch within the sensing mechanism.
2. Featuring a deceptively straightforward mechanism design, it delivers reliable electrical circuit control across diverse industrial and commercial applications, demonstrating exceptional switching stability in challenging operational environments.
AirTAC CS1H Reed Sensor CS1H030 Technical Specifications
- Model: CS1H030
- Type: Non-contact magnetic reed sensor
- Operating voltage: DC 5-30V (±10% pulsating P-P)
- Detection distance: 3mm ±10% (from magnet surface)
- Output type: NPN open collector (2-wire)
- Contact configuration: 1NO (Normally Open)
- Protection rating: IP67 (dust/water resistant)
- Housing material: Nickel-plated brass with PBT housing
- Temperature range: -20℃ to +70℃ (no icing)
- Lead wire length: 2m standard (customizable)
- Wire specification: 22AWG PVC insulated cable
- Response frequency: ≤200Hz
- Weight: 38g ±2g (sensor body only)
- Dimensions: 18mm(W) × 12mm(D) × 34mm(H)
- Hysteresis: ≤15% of detection distance
- Certifications: CE, RoHS compliant
High-precision magnetic proximity sensor featuring gold-plated reed contacts for reliable switching in harsh environments. The hermetically sealed glass tube ensures stable performance under vibration. Optimized for cylinder position detection with LED status indication and reverse polarity protection.
- Pneumatic cylinder end position detection
- Elevator door position monitoring systems
- Injection molding machine clamp positioning
- Automated conveyor belt alignment control
- Hydraulic press safety interlock systems
Installation guidelines:
Mount parallel to magnet travel path with 1-3mm air gap. Use M5×12 mounting screws (torque ≤0.5N·m).
Avoid proximity to strong electromagnetic sources (>80kA/m). For cylinder mounting, align sensor centerline
with magnet midpoint (±1mm tolerance).
| Property | Property Value |
|---|---|
| sku | CS1H030 |
