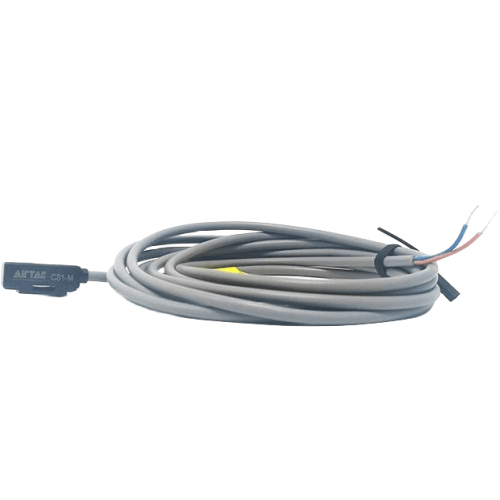

Airtac CS1M Reed Sensor CS1M020A25
$12.32
Regular price
$19.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1M020A25
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor utilizes magnets or electromagnets to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
Installation guidelines:
Mount sensor parallel to magnet path with 0-2mm air gap. Ensure metallic surfaces within 10mm radius are non-magnetic. For optimal performance, maintain sensor alignment within ±5° of actuator axis.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M Magnetic Reed Sensor CS1M020A25 Technical Specifications
- Model: CS1M020A25
- Type: Magnetic reed proximity sensor (non-contact)
- Detection method: Magnetic field actuation
- Output configuration: NPN normally open (NO)
- Operating voltage: DC 5-30V (±10%)
- Current capacity: ≤200mA
- Protection rating: IP67 (dust/water resistant)
- Response frequency: 2kHz max
- Hysteresis: ≤15% of sensing distance
- Lead wire: 2m PVC cable (UL2464 28AWG/0.2mm²)
- Housing material: Glass-filled PBT (UL94 V-0)
- Detection face material: Polycarbonate
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +85℃
- Weight: 50g ±2g (sensor body only)
- Dimensions: 18mm(W) × 15mm(D) × 38mm(H)
- Certifications: CE, RoHS compliant
Compact magnetic proximity sensor with overcurrent protection and reverse polarity safeguard. Features wear-free operation through non-contact detection, with LED status indicator for real-time monitoring. Optimized for cylinder position feedback in pneumatic systems.
Typical Applications:
- Pneumatic cylinder end position detection
- Conveyor belt object presence verification
- Injection molding machine safety interlocks
- Automated packaging line sequencing
- Elevator door position confirmation
Installation guidelines:
Mount sensor parallel to magnet path with 0-2mm air gap. Ensure metallic surfaces within 10mm radius are non-magnetic. For optimal performance, maintain sensor alignment within ±5° of actuator axis.
| Property | Property Value |
|---|---|
| sku | CS1M020A25 |
