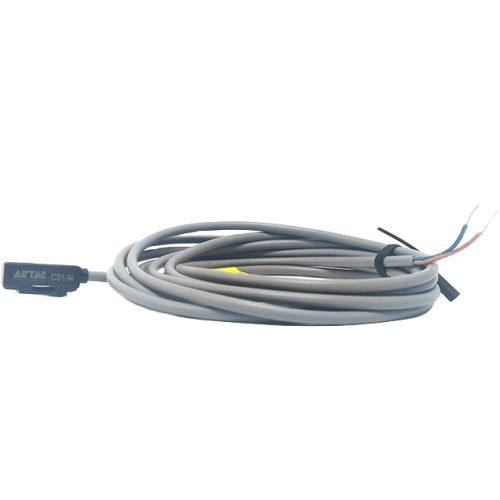

Airtac CS1M Reed Sensor CS1M030S10
$12.99
Regular price
$20.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1M030S10
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor utilizes magnets or electromagnets to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm alignment tolerance.
Maintain 60-80% of rated detection distance during operation.
For gang mounting, keep ≥20mm spacing between adjacent sensors.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M030S10 Magnetic Reed Sensor Specifications
- Model: CS1M030S10
- Type: Magnetic reed sensor (NPN normally open)
- Operating voltage: 12-24VDC ±10%
- Output current: ≤200mA
- Leakage current: ≤10μA
- Response frequency: ≤1000Hz
- Detection distance: 3mm ±10%
- Hysteresis: ≤15% of detection distance
- Protection rating: IP67
- Housing material: PBT + Glass fiber
- Contact material: Ruthenium alloy
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +80℃
- Cable length: 2 meters standard
- Wire specification: 22AWG silicone-coated
- Weight: 48g ±2g
- Dimensions: 50mm(L) × 15mm(W) × 10.5mm(H)
- Mounting: M5 threaded or T-slot installation
High-precision magnetic proximity sensor with ruthenium alloy contacts for extended cycle life (≥10^7 operations). Features overcurrent protection and reverse polarity safeguards. The anti-vibration design maintains stable detection in high-shock environments (up to 30G acceleration).
Typical Applications:
- Pneumatic cylinder position feedback in automation lines
- Safety door monitoring in injection molding machines
- Elevator car position verification systems
- Material handling equipment limit detection
- Medical device actuation confirmation
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm alignment tolerance.
Maintain 60-80% of rated detection distance during operation.
For gang mounting, keep ≥20mm spacing between adjacent sensors.
| Property | Property Value |
|---|---|
| sku | CS1M030S10 |
