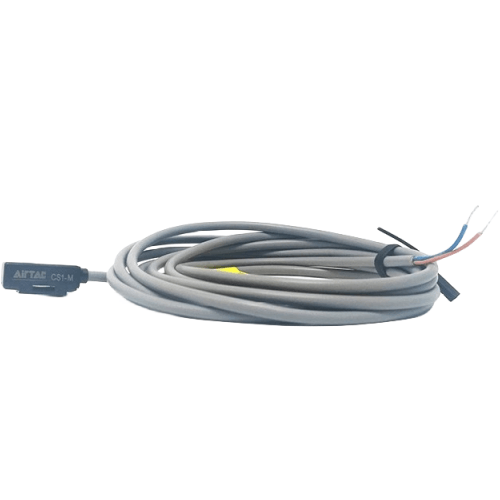

Airtac CS1M Reed Sensor CS1M030S25
$12.99
Regular price
$20.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1M030S25
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor utilizes magnets or electromagnets to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
Installation guidelines:
Maintain 2mm air gap between sensor face and cylinder. Avoid parallel installation
with high-current cables (min. 50mm separation). Use shielded cable for EMI environments.
Critical notes:
Not suitable for explosive atmospheres. Maximum cable extension: 100m with 0.75mm² wire.
Clean sensing surface regularly in dusty conditions.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M030S25 Reed Sensor Technical Details
- Model: CS1M030S25
- Sensor type: Non-contact magnetic reed switch
- Detection distance: 3±1mm (cylinder wall thickness ≤2mm)
- Operating voltage: DC12-240V (10% tolerance)
- Output configuration: 2-wire normally open (NO)
- Current consumption: ≤15mA
- Response frequency: ≤100Hz
- Protection class: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT (UL94 V-0 rated)
- Cable specification: 0.3m PVC cable, Ø3.5mm, brown/blue wires
- Contact capacity: 200mA max (resistive load)
- Ambient temperature: -25℃ to +80℃ (no icing)
- Hysteresis: ≤10% of detection distance
- Weight: 24g ±1g
- Dimensions: 30mm(L) × 15mm(W) × 10.5mm(H)
- Mounting: M3 screw fixation or DIN rail compatible
- Certifications: CE, RoHS compliant
Compact magnetic proximity sensor with sealed construction for harsh environments. Features overvoltage protection and reverse polarity safeguard. The gold-plated reed contacts ensure 10^7 operations lifespan. Requires ferromagnetic actuator (included with cylinders).
Implementation Scenarios:
- Pneumatic cylinder position feedback in assembly lines
- Safety interlock systems for automated doors
- Material handling equipment limit detection
- Injection molding machine clamp position monitoring
- Food processing conveyor belt synchronization
Installation guidelines:
Maintain 2mm air gap between sensor face and cylinder. Avoid parallel installation
with high-current cables (min. 50mm separation). Use shielded cable for EMI environments.
Critical notes:
Not suitable for explosive atmospheres. Maximum cable extension: 100m with 0.75mm² wire.
Clean sensing surface regularly in dusty conditions.
