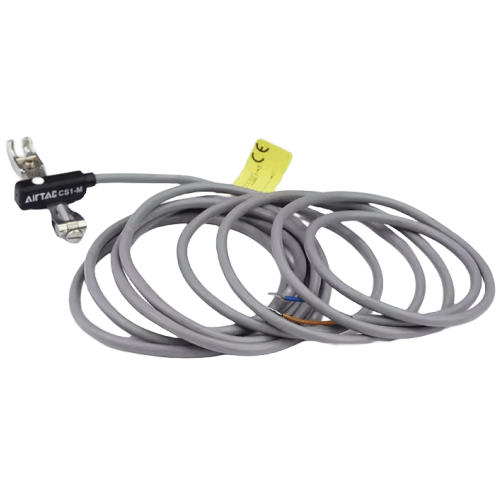

Airtac CS1MC Reed Type Sensor CS1MC08S06
$15.32
Regular price
$22.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1MC08S06
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. A Reed Sensor operates by utilizing a magnet or electromagnet to generate a magnetic field, which actuates the internal Reed Switch through magnetic field interaction.
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
Installation guidelines:
Maintain 0.5-1mm air gap between sensor and cylinder body. Avoid mounting near strong electromagnetic sources (>80kA/m).
For best performance, align sensor axis parallel to magnet movement direction.
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
AirTAC CS1MC08S06 Reed Proximity Sensor Technical Details
- Model: CS1MC08S06
- Type: Magnetic reed switch (non-contact)
- Operating voltage: 5-240V DC/AC (rectified)
- Current capacity: 0.5A max
- Induction distance: 8±1.5mm (from magnet surface)
- Response frequency: ≤300Hz
- Wire length: 2m standard (UL2651 22AWG)
- Housing material: PBT+GF (30% glass fiber)
- Contact form: 1NO (Normally Open)
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃ (-13℉ to 158℉)
- Hysteresis: ≤15% of sensing distance
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Weight: 12.5g ±0.3g
- Dimensions: 18.5mm(W) × 6.5mm(H) × 36mm(L)
- Mounting: DIN rail or M3 screw (2.5mm clearance hole)
Compact magnetic proximity switch designed for precise cylinder position detection in pneumatic systems. Features gold-plated reed contacts for reliable switching and epoxy encapsulation for shock/vibration resistance. Optimized for cylinder mounting with T-slot compatibility.
Typical Installations:
- Pneumatic cylinder end-position verification
- Automatic door safety interlocks
- Conveyor belt package presence detection
- Injection molding machine clamp position feedback
- Automated warehouse stacker positioning
Installation guidelines:
Maintain 0.5-1mm air gap between sensor and cylinder body. Avoid mounting near strong electromagnetic sources (>80kA/m).
For best performance, align sensor axis parallel to magnet movement direction.
| Property | Property Value |
|---|---|
| sku | CS1MC08S06 |
