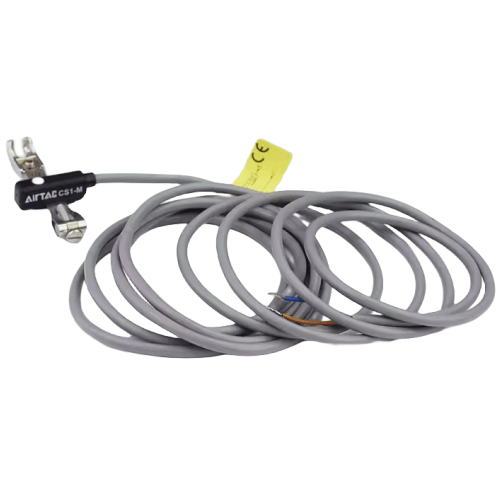

Airtac CS1MC Reed Type Sensor CS1MC08S50
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
AirTAC CS1MC08S50 Reed Sensor Technical Details
- Model: CS1MC08S50
- Type: Magnetic proximity sensor (Reed switch)
- Detection method: Non-contact magnetic actuation
- Voltage range: DC 5-240V (AC/DC compatible)
- Current capacity: ≤200mA
- Output type: 1 N.O. (Normally Open) contact
- Detection distance: 0-50mm (adjustable)
- Repeat accuracy: ±0.5mm
- Response time: ≤1ms
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT with nickel-plated brass insert
- Operating temperature: -25℃ to +70℃
- Vibration resistance: 10-55Hz with 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Weight: 28g ±1g
- Dimensions: 8mm(D) × 20mm(W) × 50mm(H)
- Cable length: Standard 2m PVC cable (customizable)
Compact magnetic proximity switch designed for precise cylinder position detection in harsh environments. Features gold-plated reed contacts for reliable switching and epoxy-encapsulated electronics for vibration resistance. The adjustable sensitivity allows compensation for magnetic field variations.
- Pneumatic cylinder end position detection
- Automatic door safety interlocks
- Injection molding machine safety gates
- Conveyor system object counting
- Hydraulic press stroke limit control
Installation guide:
Mount using M5×0.8 thread with 4-6Nm torque. Maintain 3mm minimum gap between sensor face and actuator. For optimal performance, align sensor axis within ±5° of magnet movement path. Avoid installation near strong electromagnetic sources.
| Property | Property Value |
|---|---|
| sku | CS1MC08S50 |
