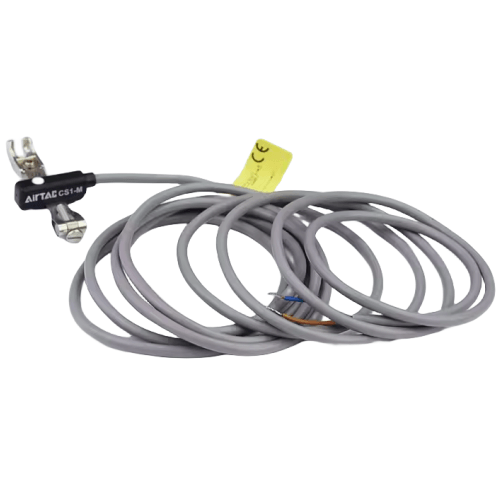

Airtac CS1MX Reed Sensor CS1MX030S32
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
AirTAC CS1MX030S32 Reed Sensor Technical Details
- Model: CS1MX030S32
- Type: Non-contact magnetic proximity sensor
- Sensing distance: 3mm ±10%
- Output configuration: 2-wire NPN normally open (NO)
- Voltage range: DC 5-30V (10% ripple P-P max)
- Current consumption: ≤15mA @ 24VDC
- Protection rating: IP67 (IEC 60529)
- Temperature range: -25℃ to +70℃ (no icing)
- Housing material: Nickel-plated brass with PBT housing
- Cable specification: 3m PVC cable, Ø3.5mm, 4-core shielded
- Repeat accuracy: ≤0.1mm
- Response frequency: 1kHz max
- Hysteresis: ≤15% of sensing distance
- Contact protection: Built-in surge suppression
- Weight: 32g ±2g (sensor body only)
- Dimensions: 18mm(W) × 6.5mm(H) × 72mm(L)
High-precision magnetic proximity switch designed for cylinder position detection in harsh industrial environments. Features a wear-free reed contact system with gold-plated contacts for reliable switching up to 10⁷ operations. The corrosion-resistant housing withstands cutting fluids and metal particles.
- Pneumatic cylinder end position detection
- Injection molding machine clamp positioning
- Conveyor system pallet tracking
- Automated welding equipment safety interlocks
- Hydraulic press stroke limit control
Installation guidelines:
Mount parallel to cylinder axis with 0-1mm air gap between sensor face and magnet.
Use M3 mounting screws (max torque 0.5Nm). For sliding applications,
secure cable with strain relief clamp within 15cm of sensor body.
| Property | Property Value |
|---|---|
| sku | CS1MX030S32 |
