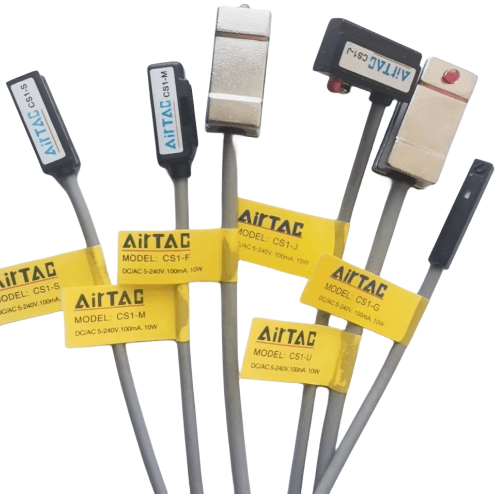

Airtac CS1U Magnetic Reed Sensor CS1U030
$9.99
Regular price
$17.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1U030
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Reed sensors utilize magnets or electromagnets to generate a magnetic field, which actuates the reed switch inside the sensor to open or close the circuit.
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
Mounting protocol:
Secure sensor within 3mm parallel alignment to cylinder magnet path.
Use non-metallic shims if mounting on ferrous surfaces.
Avoid metal chips accumulation in sensing area.
Maintenance alert:
Periodic gap verification required - thermal expansion in high-cycle
applications may alter detection distance. Clean lens-free surface with
IPA, never use abrasives.
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
AirTAC CS1U Series Magnetic Reed Sensor CS1U030 Technical Details
- Model: CS1U030
- Type: Non-contact magnetic reed switch
- Operating principle: Magnetic field actuation (cylinder piston detection)
- Rated voltage: DC 5-240V (AC compatible with rectifier)
- Current rating: ≤200mA
- Output type: 2-wire NPN normally open (NO)
- Detection distance: 3±0.5mm (from sensor face to magnet surface)
- Response frequency: ≤3000Hz
- Hysteresis: ≤15% of detection distance
- Operating temp: -25℃ to +70℃ (no icing)
- Protection rating: IP67 (dust/water resistant)
- Housing material: PBT + glass fiber (UL94 V-0)
- Cable specs: 2m PVC cable, Ø3.5mm, 22AWG
- Connection: Lead wire type (M8 connector optional)
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Electrical life: ≥5×10⁶ operations
- Weight: 32g ±2g (sensor body only)
- Dimensions: 18mm(W) × 15mm(D) × 40mm(H)
Compact magnetic proximity sensor with overmolded construction for harsh environments. Features reverse polarity protection and surge suppression, optimized for pneumatic cylinder position feedback. The oil-resistant design maintains stable operation in lubricated air systems.
Implementation Guide:
- Industrial automation: Cylinder end-position detection in packaging lines
- Automotive: Clamping fixture status monitoring
- Food processing: Valve position confirmation in CIP systems
- Semiconductor: Actuator feedback in wafer handling robots
Mounting protocol:
Secure sensor within 3mm parallel alignment to cylinder magnet path.
Use non-metallic shims if mounting on ferrous surfaces.
Avoid metal chips accumulation in sensing area.
Maintenance alert:
Periodic gap verification required - thermal expansion in high-cycle
applications may alter detection distance. Clean lens-free surface with
IPA, never use abrasives.
| Property | Property Value |
|---|---|
| sku | CS1U030 |
