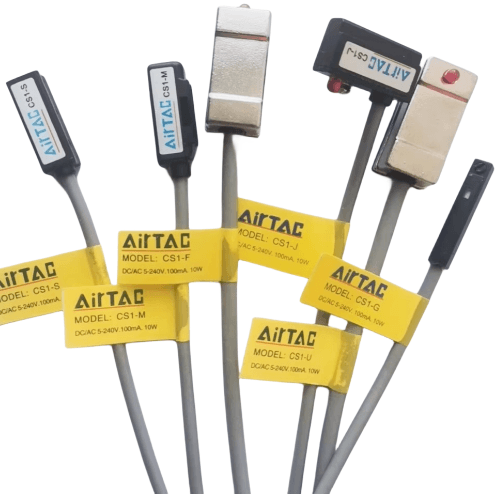

Airtac CS1U Magnetic Reed Sensor CS1U040
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
AirTAC CS1U Reed Sensor CS1U040 Technical Details
- Model: CS1U040
- Sensor type: Reed switch (non-contact magnetic detection)
- Output configuration: NPN normally open (NO)
- Supply voltage: 5-30V DC (±10% ripple)
- Current consumption: ≤15mA @ 24V DC
- Load current: ≤100mA
- Induction distance: 0-4mm (from magnet surface)
- Response frequency: ≤300Hz
- Housing material: Glass fiber reinforced PBT
- Contact material: Rhodium-plated contacts
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +85℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Weight: 18g ±0.5g
- Dimensions: 18mm(W) × 6.5mm(H) × 38mm(L)
Compact magnetic proximity sensor designed for precise cylinder position detection in harsh environments. Features gold-plated spring contacts for enhanced durability (≥5 million operations) and reverse polarity protection. Integrated surge suppression protects against voltage spikes up to 250V peak. Compatible with ISO cylinder mounting grooves.
- Pneumatic cylinder end-position feedback in automation lines
- Material handling equipment position verification
- Safety interlock systems on injection molding machines
- Hydraulic cylinder stroke monitoring
- Packaging machine clamp detection
Installation guidelines:
Mount parallel to cylinder axis with sensor face aligned to magnet centerline.
Maintain 0.5-1mm gap between sensor and cylinder body. Use shielded cables
(≥24AWG) for EMI-sensitive environments. Clean sensing surface monthly in
high-contamination areas.
| Property | Property Value |
|---|---|
| sku | CS1U040 |
