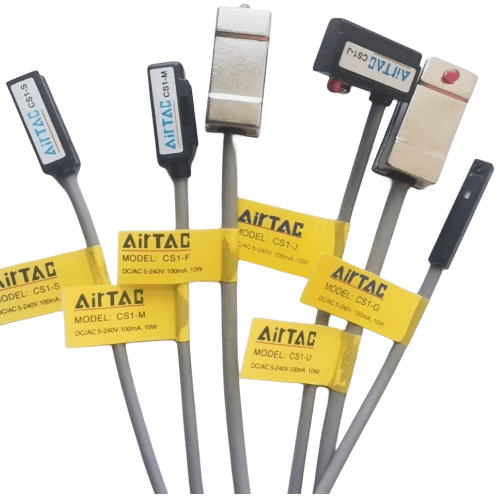

Airtac CS1U Magnetic Reed Sensor CS1U050
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
AirTAC CS1U050 Reed Sensor Technical Details
- Model: CS1U050
- Type: Non-contact magnetic reed sensor
- Detection method: Magnetic field actuation (cylinder piston position sensing)
- Output type: NPN normally open (NO) / PNP optional
- Supply voltage: DC 5-30V (±10%)
- Current consumption: ≤15mA
- Max load current: 100mA
- Response time: ≤1ms
- Hysteresis: ≤1.5mm
- Operating distance: 5mm ±10% (from sensor face to magnet center)
- Lead wire: 2m PVC cable (0.2mm²) with IP67-rated connector
- Protection class: IP67 (dustproof & waterproof)
- Temperature range: -25℃ to +70℃ (no icing)
- Housing material: Glass-filled PBT resin (UL94 V-0)
- Contact material: Ruthenium alloy contacts
- Weight: 62g ±3g
- Dimensions: 8mm(W) × 16mm(D) × 34mm(H)
- Compliance: CE, RoHS, REACH
High-precision position sensor with military-grade sealing, designed for pneumatic cylinder position feedback in harsh environments. Features gold-plated reed switch contacts for 10 million+ operations and vibration-resistant epoxy encapsulation. Operates through non-ferrous metals up to 2mm thickness.
- Automated production line cylinder end-position detection
- Packaging machinery stopper confirmation
- Injection molding machine clamp position feedback
- Pneumatic actuator stroke monitoring systems
- Elevator door safety interlock verification
Installation guidelines:
Mount parallel to cylinder axis within 5±0.5mm clearance from magnet path.
Use M3 mounting screws with 0.3-0.5Nm torque. Maintain 10mm minimum spacing
between adjacent sensors to prevent magnetic interference.
| Property | Property Value |
|---|---|
| sku | CS1U050 |
