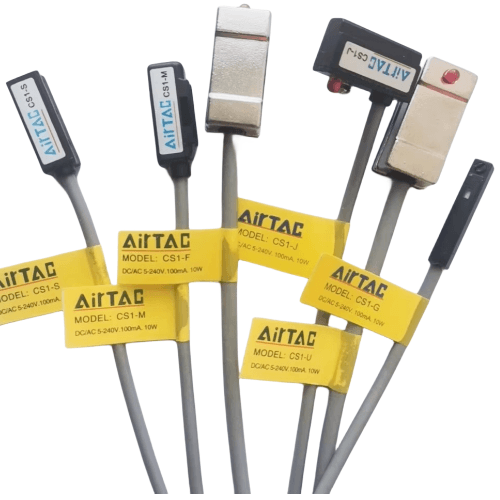

Airtac CS1U Magnetic Reed Sensor CS1U100
$14.85
Regular price
$22.35
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1U100
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Reed sensors utilize magnets or electromagnets to generate a magnetic field, which actuates the reed switch inside the sensor to open or close the circuit.
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
Installation guidelines:
Mount parallel to cylinder axis with 0.5-2mm air gap between sensor face and magnet.
Use M3 mounting screws with anti-vibration washers. For optimal performance,
maintain ambient magnetic field strength below 80kA/m.
Maintenance note:
Avoid using near strong electromagnetic sources (transformers/motors).
Clean sensing surface with isopropyl alcohol - abrasive cleaners may damage
the nickel plating. Perform annual contact resistance check (max 100mΩ).
2. This deceptively simple mechanism can reliably control circuits across a wide range of industrial and commercial applications.
AirTAC CS1U100 Reed Sensor Technical Specifications
- Model: CS1U100
- Type: Non-contact magnetic proximity sensor
- Sensing method: Reed switch with permanent magnet activation
- Operating voltage: DC 5-240V (AC compatible with rectifier)
- Output type: SPDT (1 Form C contact)
- Max current: 500mA resistive load
- Protection rating: IP67 (water/dust resistant)
- Temperature range: -25℃ to +80℃
- Housing material: Nickel-plated brass with PBT housing
- Lead wire: 2m PVC cable (standard), optional 5m/10m available
- Repeat accuracy: ±0.5mm
- Response frequency: ≤100Hz
- Weight: 85g ±3g (sensor body only)
- Dimensions: 18mm(W) × 60mm(L) × 10.5mm(H)
- Mounting torque: 0.8-1.2N·m
Compact magnetic proximity sensor designed for precise position detection in pneumatic cylinders. Features hermetically sealed reed contacts for spark-free operation in explosive environments. Corrosion-resistant construction with reverse polarity protection and surge suppression.
Typical Applications:
- Cylinder piston position feedback in automation lines
- Tooling machine safety interlocks
- Elevator door position detection systems
- Hydraulic press stroke limit control
- Conveyor belt object presence verification
Installation guidelines:
Mount parallel to cylinder axis with 0.5-2mm air gap between sensor face and magnet.
Use M3 mounting screws with anti-vibration washers. For optimal performance,
maintain ambient magnetic field strength below 80kA/m.
Maintenance note:
Avoid using near strong electromagnetic sources (transformers/motors).
Clean sensing surface with isopropyl alcohol - abrasive cleaners may damage
the nickel plating. Perform annual contact resistance check (max 100mΩ).
| Property | Property Value |
|---|---|
| sku | CS1U100 |
