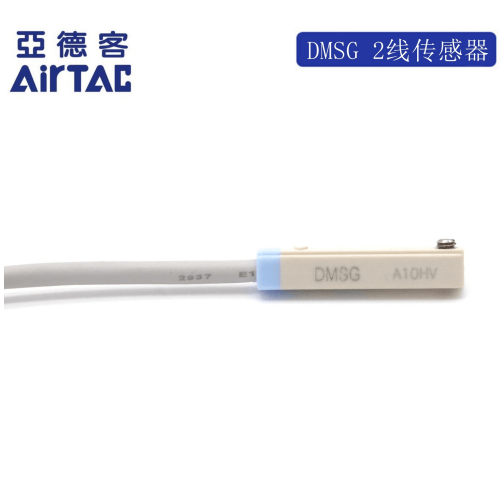

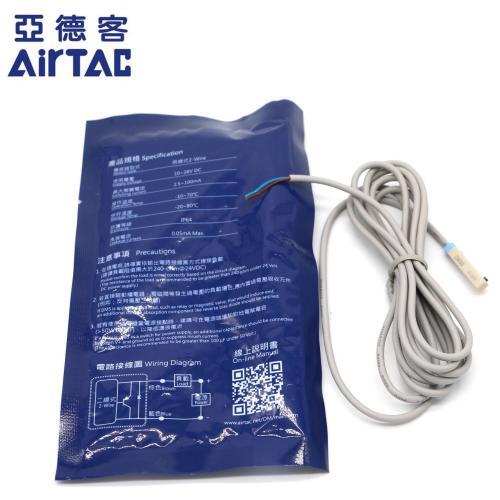

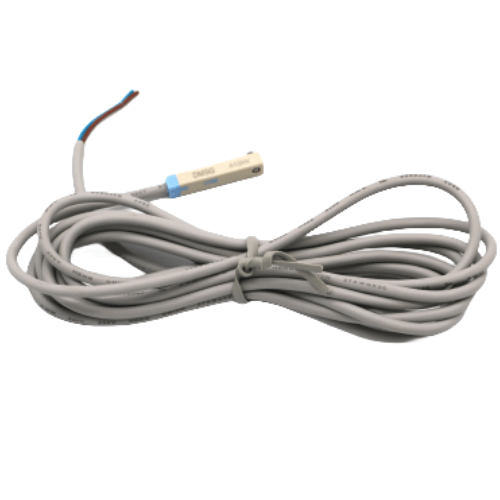

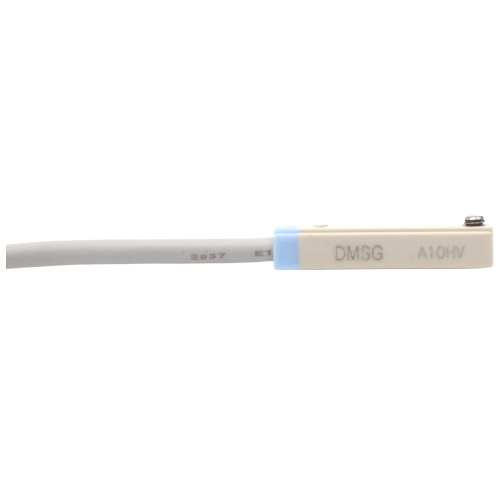

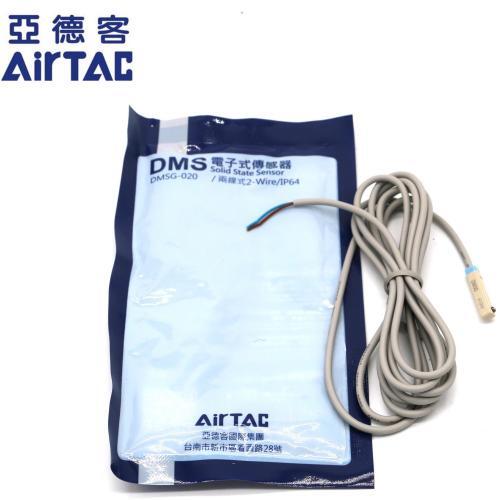

Airtac DMSG Electronic Sensor DMSG-P100-W
2、The device comprises four essential components: a temperature-sensing probe, signal processing unit, LCD interface, and power supply system.
3、At its core lies the sensing component - precision-engineered with one or multiple high-precision, fast-response thermistors that ensure optimal temperature measurement fidelity and sub-second thermal responsiveness.
AirTAC DMSG-P100-W Electronic Proximity Sensor Technical Details
- Model: DMSG-P100-W
- Type: Inductive proximity sensor (non-contact)
- Sensing distance: 10mm ±10%
- Output type: NPN/PNP NO+NC selectable
- Supply voltage: 12-24V DC ±10% (ripple ≤10%)
- Current consumption: ≤15mA
- Output current: ≤200mA
- Response frequency: 500Hz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC 60529)
- Housing material: Nickel-plated brass
- Cable length: 2m PUR cable (M12x1 connector optional)
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Weight: 120g ±5g (sensor body only)
- Dimensions: 18mm(D) × 34mm(L) × 10mm(W)
- EMC compatibility: EN 60947-5-2
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
High-precision industrial-grade proximity sensor featuring dual output configuration and temperature-stable oscillation circuit. The triple-shielded coil design ensures reliable detection of ferrous/non-ferrous metals in high EMI environments. Certified for continuous operation in oil mist and coolant exposure conditions.
- Position verification in CNC machine tool changers
- Sheet metal counting in stamping presses
- Pallet presence detection in AS/RS warehouses
- Safety interlock systems for robotic workcells
- Bottle cap alignment in filling machines
Installation guidelines:
Maintain 2x sensing distance between adjacent sensors. Use M4 mounting screws with 0.5-0.8Nm torque.
For metallic backgrounds, maintain minimum 3x sensing distance to mounting surface.
| Property | Property Value |
|---|---|
| sku | DMSG-P100-W |
