Airtac DMSJ Electronic Sensor DMSJ-N030

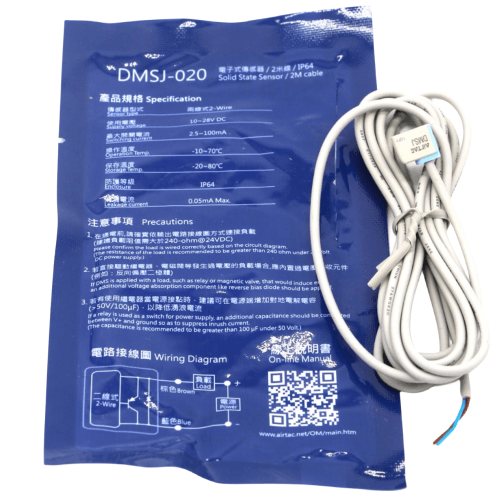

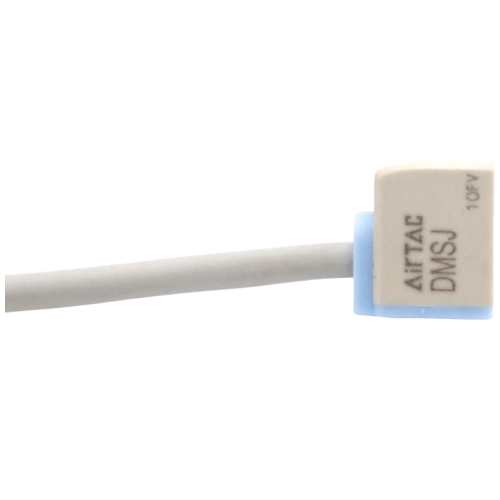

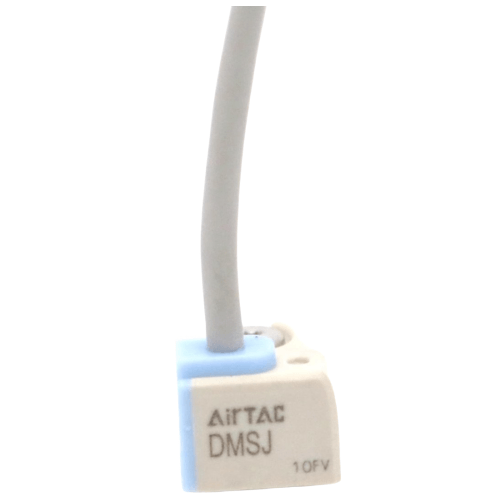

The AirTAC Airtac DMSJ Electronic Sensor DMSJ-N030 is a genuine DMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a npn 3-wire output on 5-30 V DC with a 3 m flying lead. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state)
- OutputNPN 3-wire
- Supply voltage5-30 V DC
- ProtectionIP64
- Profile (groove fit)J
- Lead / connector3 m flying lead
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DMSJ Electronic Sensor DMSJ-N030
The DMSJ-N030 is a solid-state electronic position switch from AirTAC's DMS family. Its NPN 3-wire output sinks current into a PLC or controller input, and the supply range is 5-30 V DC. A 3 m flying lead exits the body, and the general housing carries an IP64 rating. Like every switch in this class, it produces a signal only when mounted on a cylinder fitted with the magnet option.
Because the output is three-wire rather than two, the switching element sits in its own circuit, which gives the PLC a cleaner, lower-leakage signal than a series-wired two-wire unit. The J profile letter defines the mechanical fit - it has to seat in the matching sensor groove of your cylinder, so check the groove style against the datasheet before ordering.
Airtac DMSJ Electronic Sensor DMSJ-N030 Technical Specifications
| Model | Airtac DMSJ Electronic Sensor DMSJ-N030 |
|---|---|
| Family | DMS — Electronic cylinder switch |
| Technology | Electronic (solid-state) |
| Output | NPN 3-wire |
| Outputs in this family | 2-wire, NPN 3-wire or PNP 3-wire |
| Lead / connector | 3 m flying lead |
| Supply voltage | 5-30 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | J (cylinder-groove fit) |
| Profiles in this family | E, G, H, J |
| Detects | Piston magnet ring inside the cylinder |
2-wire versions run 10-28 V DC; NPN / PNP 3-wire versions run 5-30 V DC. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac DMSJ Electronic Sensor DMSJ-N030
| DMS | Electronic cylinder switch — electronic (solid-state). |
|---|---|
| J | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers E, G, H, J. It is a fit code, not a performance grade. |
| N | Output: NPN 3-wire. Blank is 2-wire, N is NPN 3-wire, P is PNP 3-wire. |
| 030 | 3 m flying lead. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | DMSJ · NPN 3-wire · 5-30 V DC |
|---|---|
| Consider EMS | the mini 2-wire electronic switch for tight installations |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac DMSJ Electronic Sensor DMSJ-N030 Is Used
CNC fixture clamping
Mounted in the groove of the clamping cylinders on a machining centre fixture, the NPN output feeds a clamp-closed signal straight to the machine PLC before cycle start.
Sorting gate confirmation
On a parcel sorting conveyor, pneumatic diverters confirm full extension through this switch so the control system releases the next parcel only after the gate has seated.
Pick-and-place gantry
Fitted to the lift cylinders of a pick-and-place gantry, the solid-state output lets the cell controller verify each Z-axis stroke before the gripper closes.
Is the Airtac DMSJ Electronic Sensor DMSJ-N030 the Right Switch?
Choose this NPN version when your input card expects a sinking signal; a PNP card needs the P variant instead. Three metres of pre-wired lead is a middle option: shorter than a 10 m run, cheaper and simpler than an M8 or M12 connector. If the switch lives in washdown spray or oil mist, step up to the -RW build with IP68 - this general type is IP64. A magnet-equipped cylinder is required; without the piston magnet nothing will trigger.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (NPN 3-wire)
- ✓ Supply rail is 5-30 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 5-30 V DC.
- check Wire npn 3-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac DMSJ Electronic Sensor DMSJ-N030 FAQ
It is an electronic solid-state switch with an NPN 3-wire output, supplied from 5-30 V DC, protected to IP64 in the general build, and wired through a 3 m flying lead. Exact load limits should be confirmed from the datasheet.
A 3-wire NPN output connects the switching element to its own supply reference, so the PLC input sees a sharper signal - but polarity must match, NPN for a sinking input card. A two-wire unit sits in series with the load like a mechanical contact and is simpler to wire, though it leaks a small current. Use the P code for sourcing inputs.
