Airtac DMSJ Electronic Sensor DMSJ-N050

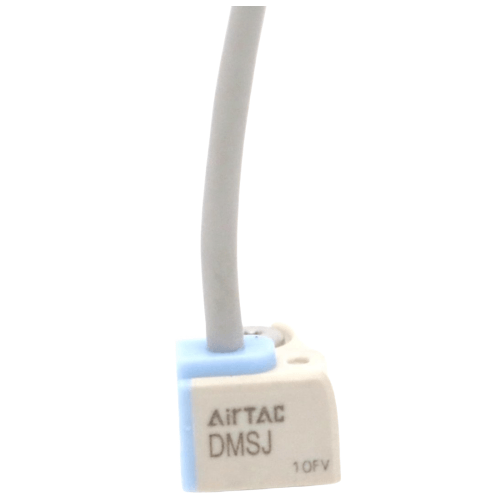

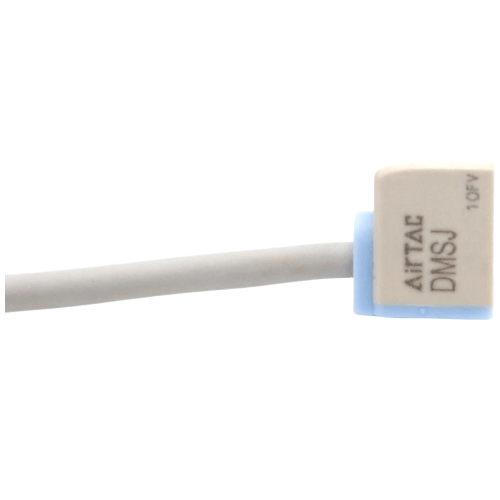

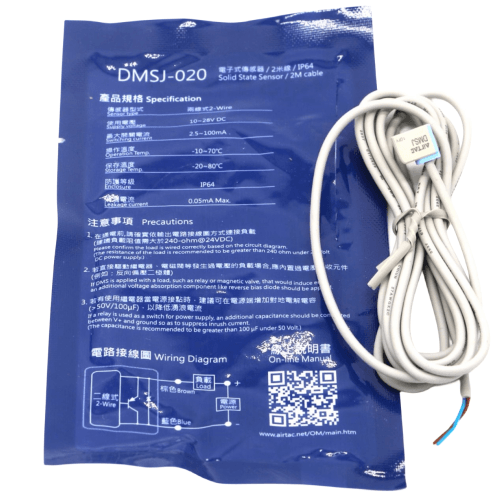

The AirTAC Airtac DMSJ Electronic Sensor DMSJ-N050 is a genuine DMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a npn 3-wire output on 5-30 V DC with a 5 m flying lead. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state)
- OutputNPN 3-wire
- Supply voltage5-30 V DC
- ProtectionIP64
- Profile (groove fit)J
- Lead / connector5 m flying lead
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DMSJ Electronic Sensor DMSJ-N050
AirTAC built the DMSJ-N050 as an electronic, solid-state position switch for cylinders that carry the factory magnet option. Output is NPN 3-wire, meaning the sensor sinks the load current and your controller input must match that polarity. It runs from a 5-30 V DC supply, its general-purpose housing is rated IP64, and a 5 m flying lead leaves the body ready for routing along the machine frame.
The extra lead length here is a wiring decision, not a performance claim: 5 m reaches from a distant cylinder to the control cabinet in one unbroken cable, avoiding joints that could fail in a vibrating cell. Note the J profile letter only sets how the switch seats in the cylinder groove - confirm it against your cylinder series before you order.
Airtac DMSJ Electronic Sensor DMSJ-N050 Technical Specifications
| Model | Airtac DMSJ Electronic Sensor DMSJ-N050 |
|---|---|
| Family | DMS — Electronic cylinder switch |
| Technology | Electronic (solid-state) |
| Output | NPN 3-wire |
| Outputs in this family | 2-wire, NPN 3-wire or PNP 3-wire |
| Lead / connector | 5 m flying lead |
| Supply voltage | 5-30 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | J (cylinder-groove fit) |
| Profiles in this family | E, G, H, J |
| Detects | Piston magnet ring inside the cylinder |
2-wire versions run 10-28 V DC; NPN / PNP 3-wire versions run 5-30 V DC. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac DMSJ Electronic Sensor DMSJ-N050
| DMS | Electronic cylinder switch — electronic (solid-state). |
|---|---|
| J | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers E, G, H, J. It is a fit code, not a performance grade. |
| N | Output: NPN 3-wire. Blank is 2-wire, N is NPN 3-wire, P is PNP 3-wire. |
| 050 | 5 m flying lead. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | DMSJ · NPN 3-wire · 5-30 V DC |
|---|---|
| Consider EMS | the mini 2-wire electronic switch for tight installations |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac DMSJ Electronic Sensor DMSJ-N050 Is Used
Palletizer gripper rails
Clamp cylinders on a palletizer's layer-forming gripper report closed position through this switch, letting the PLC confirm grip before the layer is lifted.
Press ejector interlock
In a pneumatic press, the ejector cylinder must be fully retracted before the next blank feeds; this switch wired into the PLC provides that confirmation.
Conveyor stopper stations
With 5 m of lead, a switch on a conveyor stopper cylinder reaches the panel without a junction box, simplifying install on long material-handling lines.
Is the Airtac DMSJ Electronic Sensor DMSJ-N050 the Right Switch?
For PLC inputs that source current, this NPN switch is the wrong polarity - order the P version. Against a two-wire type, the three-wire arrangement delivers a cleaner input signal; against an M8 or M12 connector, the 5 m flying lead is cheaper and can be trimmed, but you lose the ability to unplug the sensor for service. Keep this IP64 general type out of washdown areas; the -RW variant reaches IP68. No signal is possible without a magnet-fitted cylinder.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (NPN 3-wire)
- ✓ Supply rail is 5-30 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 5-30 V DC.
- check Wire npn 3-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac DMSJ Electronic Sensor DMSJ-N050 FAQ
Family DMS, electronic solid-state technology. Output: NPN 3-wire, sinking. Supply: 5-30 V DC. Protection: IP64 for this general type. Wiring: 5 m flying lead. Switching current and other limits are in the datasheet.
Electrically yes - identical NPN 3-wire electronics and the same 5-30 V DC range. The code changes only the lead length, so you choose by routing distance and whether a cut-to-length cable suits your build. If you would rather unplug the sensor at a connector, look at the M08 or M12 wiring codes instead.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
Related AirTAC Cylinder Sensors
Request a Quote for Airtac DMSJ Electronic Sensor DMSJ-N050
Send us the quantity, your cylinder model (so we can confirm the profile fit) and the destination. We confirm price, availability and lead time — usually within 7-8 hours.
