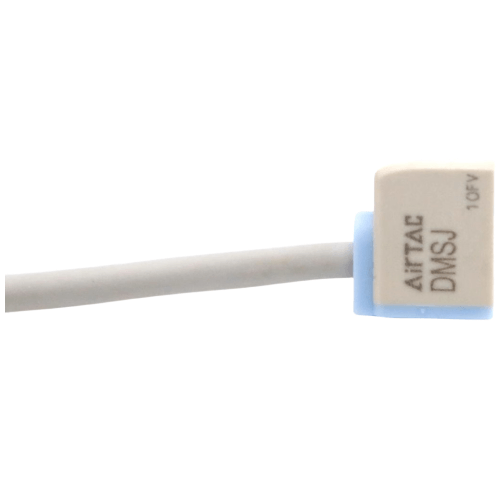

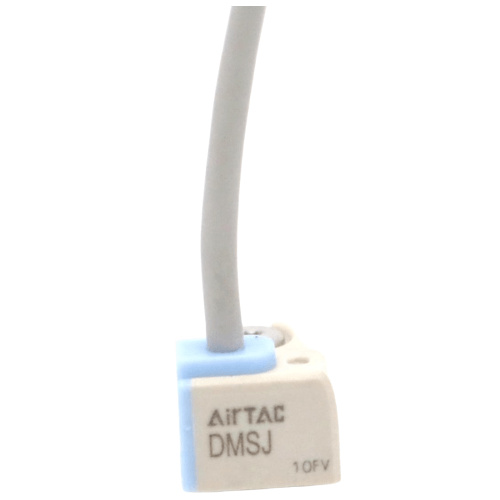

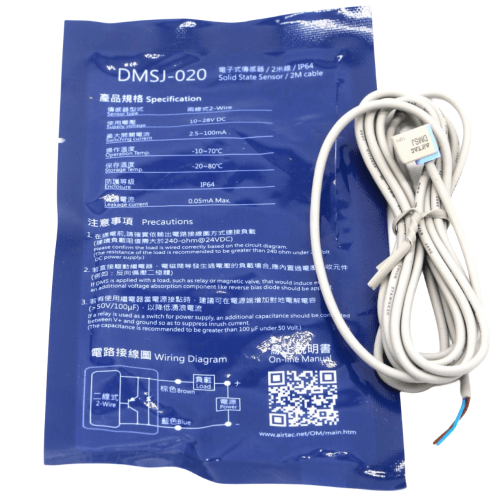

Airtac DMSJ Electronic Sensor DMSJ-N100
The AirTAC Airtac DMSJ Electronic Sensor DMSJ-N100 is a genuine DMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a npn 3-wire output on 5-30 V DC with a 10 m flying lead. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state)
- OutputNPN 3-wire
- Supply voltage5-30 V DC
- ProtectionIP64
- Profile (groove fit)J
- Lead / connector10 m flying lead
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DMSJ Electronic Sensor DMSJ-N100
This is the 10 m-lead member of the DMSJ NPN group. Inside is a solid-state electronic switch, not a mechanical reed: no contact bounce, well suited to fast and repeated cycling. The NPN 3-wire output sinks the input current of a PLC card, the supply window is 5-30 V DC, and the standard housing is IP64. It reads nothing unless it is seated in a cylinder groove on a magnet-equipped piston.
A full 10 m of pre-attached lead is the defining choice here. On large machines - long conveyors, gantries, press lines - it lets a sensor deep in the frame reach the cabinet with no splice, no terminal strip and no extra gland. Check that the J profile matches your cylinder's sensor groove; the letter is a fit code, not a grade.
Airtac DMSJ Electronic Sensor DMSJ-N100 Technical Specifications
| Model | Airtac DMSJ Electronic Sensor DMSJ-N100 |
|---|---|
| Family | DMS — Electronic cylinder switch |
| Technology | Electronic (solid-state) |
| Output | NPN 3-wire |
| Outputs in this family | 2-wire, NPN 3-wire or PNP 3-wire |
| Lead / connector | 10 m flying lead |
| Supply voltage | 5-30 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | J (cylinder-groove fit) |
| Profiles in this family | E, G, H, J |
| Detects | Piston magnet ring inside the cylinder |
2-wire versions run 10-28 V DC; NPN / PNP 3-wire versions run 5-30 V DC. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac DMSJ Electronic Sensor DMSJ-N100
| DMS | Electronic cylinder switch — electronic (solid-state). |
|---|---|
| J | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers E, G, H, J. It is a fit code, not a performance grade. |
| N | Output: NPN 3-wire. Blank is 2-wire, N is NPN 3-wire, P is PNP 3-wire. |
| 100 | 10 m flying lead. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | DMSJ · NPN 3-wire · 5-30 V DC |
|---|---|
| Consider EMS | the mini 2-wire electronic switch for tight installations |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac DMSJ Electronic Sensor DMSJ-N100 Is Used
Automated storage retrieval
Stroke confirmation from the shuttle cylinders of an automated storage and retrieval machine, where the 10 m lead spans the distance up to the mast controller.
Warehouse transfer cars
Transfer cars running the length of a warehouse aisle use these switches on their pneumatic stops; the long lead avoids splices along the rail.
Durability test rigs
Cycling rigs that exercise cylinders through millions of strokes rely on the bounce-free electronic output to register every cycle into a counter or DAQ.
Is the Airtac DMSJ Electronic Sensor DMSJ-N100 the Right Switch?
Stay with NPN only if the receiving input sinks; sourcing cards need DMSJ-P100. Between flying lead and connector, 10 m of cable wins on uninterrupted runs and on cost, while an M12 code wins where switches are swapped often during maintenance. For oil spray or heavy flexing, the -RW version lifts protection to IP68 - this one stays at IP64. Remember: no piston magnet, no signal.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (NPN 3-wire)
- ✓ Supply rail is 5-30 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 5-30 V DC.
- check Wire npn 3-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac DMSJ Electronic Sensor DMSJ-N100 FAQ
It is an electronic (solid-state) switch, NPN 3-wire output, powered from 5-30 V DC and rated IP64 in the general build. Wiring is a 10 m flying lead. For load current and voltage drop figures, confirm from the datasheet.
No. A reed switch closes a mechanical contact and tolerates AC or DC across a wide band; this NPN unit is DC-only with fixed polarity and a 5-30 V DC supply. What you gain is no contact wear and no bounce, which matters on cylinders cycling thousands of times per shift.
