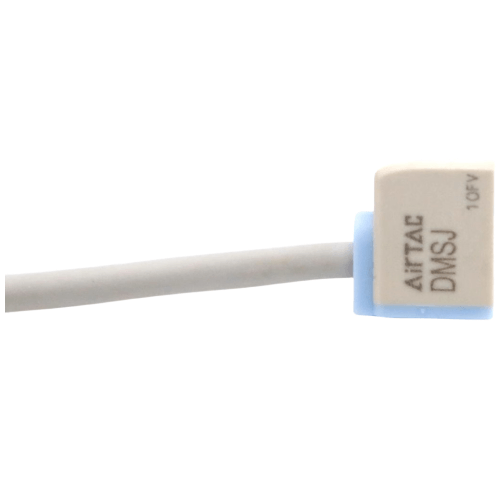

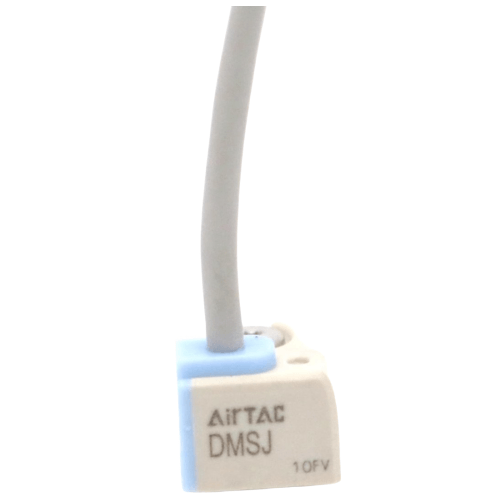

Airtac DMSJ Electronic Sensor DMSJ-NC12
The AirTAC Airtac DMSJ Electronic Sensor DMSJ-NC12 is a genuine DMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a npn 3-wire output on 5-30 V DC. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state)
- OutputNPN 3-wire
- Supply voltage5-30 V DC
- ProtectionIP64
- Profile (groove fit)J
- Lead / connectorSee datasheet
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DMSJ Electronic Sensor DMSJ-NC12
The DMSJ-NC12 is an AirTAC electronic (solid-state) magnetic position switch with an NPN 3-wire output. It bolts into the sensor groove of an AirTAC cylinder fitted with the magnet option and signals the PLC each time the piston reaches it. Because the output is NPN 3-wire, it draws from a 5-30 V DC supply and sinks the input card current, and the general construction is rated IP64. The wiring token NC12 carries the C12 connection code, which is a factory variant not documented in our catalogue - we will confirm the exact connection detail from the datasheet on request.
Two things set this model apart from a reed switch: the output is fully solid-state, so there is no mechanical contact to bounce or wear out during fast, repetitive cycling, and the 3-wire NPN form gives a clean, defined signal level into a PLC input rather than wiring in series like a two-wire switch. The profile letter J selects the body shape that must seat correctly in your cylinder's sensor groove - match it against the groove on your cylinder and confirm the exact fit before ordering. No magnet in the piston means nothing to sense.
Airtac DMSJ Electronic Sensor DMSJ-NC12 Technical Specifications
| Model | Airtac DMSJ Electronic Sensor DMSJ-NC12 |
|---|---|
| Family | DMS — Electronic cylinder switch |
| Technology | Electronic (solid-state) |
| Output | NPN 3-wire |
| Outputs in this family | 2-wire, NPN 3-wire or PNP 3-wire |
| Lead / connector | See datasheet |
| Supply voltage | 5-30 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | J (cylinder-groove fit) |
| Profiles in this family | E, G, H, J |
| Detects | Piston magnet ring inside the cylinder |
2-wire versions run 10-28 V DC; NPN / PNP 3-wire versions run 5-30 V DC. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac DMSJ Electronic Sensor DMSJ-NC12
| DMS | Electronic cylinder switch — electronic (solid-state). |
|---|---|
| J | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers E, G, H, J. It is a fit code, not a performance grade. |
| N | Output: NPN 3-wire. Blank is 2-wire, N is NPN 3-wire, P is PNP 3-wire. |
| 12 | See datasheet. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | DMSJ · NPN 3-wire · 5-30 V DC |
|---|---|
| Consider EMS | the mini 2-wire electronic switch for tight installations |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac DMSJ Electronic Sensor DMSJ-NC12 Is Used
PLC end-of-stroke confirmation
On an automated assembly station, the DMSJ-NC12 clips into the cylinder groove and its NPN 3-wire output feeds a clean sinking signal to the PLC input card, confirming the clamp has fully closed before the robot is released.
High-cycle pick-and-place heads
Grippers on a electronics assembly machine cycle thousands of times per shift; the solid-state NPN output has no reed contact to bounce, so position feedback stays stable run after run.
Sorting gate position feedback
A parcel divert gate driven by a magnet-equipped AirTAC cylinder reports open and closed states through this switch, letting the sorter controller verify each divert before releasing the next parcel.
Is the Airtac DMSJ Electronic Sensor DMSJ-NC12 the Right Switch?
Choose the DMSJ-NC12 when your control circuit is built around NPN (sinking) PLC inputs - the 3-wire format needs the polarity matched to the input card, and it runs on 5-30 V DC. If your card expects a sourcing (PNP) signal, pick the P-version of the same switch instead. The C12 connection token is not decoded in our data, so ask us to verify it against the datasheet. Whatever the connection, the profile J body has to match the sensor groove on your magnet-equipped cylinder - a wrong profile simply will not seat. For washdown or moving cable tracks, consider the -RW version, which lifts protection to IP68.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (NPN 3-wire)
- ✓ Supply rail is 5-30 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 5-30 V DC.
- check Wire npn 3-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac DMSJ Electronic Sensor DMSJ-NC12 FAQ
It is an electronic (solid-state) magnetic position switch with an NPN 3-wire output. Supply voltage is 5-30 V DC. Protection rating is IP64 (general type). The wiring uses the C12 connection code, an undocumented factory variant - request the datasheet from us to confirm the exact connection detail.
A 3-wire NPN output delivers a defined, clean level into a PLC sinking input, while a 2-wire unit wires in series like a mechanical contact and carries a small leakage current. NPN and PNP are not interchangeable - match the switch to your input card's polarity. Note the switch only works on an AirTAC cylinder ordered with the magnet option.
