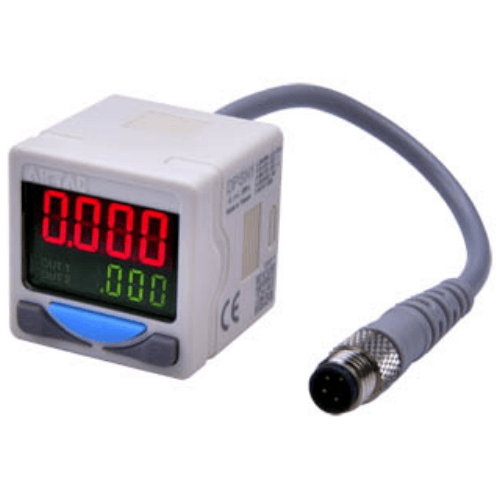

Airtac DPS Electronic Digital Display Pressure Sensor DPSN1B-01050
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPSN1B-01050 Electronic Digital Pressure Sensor Technical Details
- Model: DPSN1B-01050
- Pressure range: -0.1~1.0 MPa (-14.5~145 psi)
- Accuracy: ±0.5% F.S. (25℃ reference)
- Output signal: 4-20mA / 0-10V (selectable via button)
- Power supply: 12-28V DC (ripple ≤10%)
- Display: 4-digit LED with red backlight (0.36" height)
- Sampling rate: 50 times/sec
- Pressure port: G1/4" BSPP female thread (stainless steel)
- Process connection: Radial axial seal with O-ring (NBR material)
- Operating temp: -20℃~85℃ (-4°F~185°F)
- Storage temp: -30℃~100℃ (-22°F~212°F)
- Protection: IP67 (NEMA 4X equivalent)
- Response time: ≤10ms (90% step response)
- Weight: 320g ±5g (including cable connector)
- Dimensions: 78mm(W) × 48mm(H) × 36mm(D)
- Housing material: Anodized aluminum alloy (black)
- Cable length: 2m standard (shielded 4-core 22AWG)
Industrial-grade pressure transducer with integrated digital display and multiple output options. Features auto-zero calibration function and 4-way rotatable display (90° increments). The shock-resistant design withstands 50G acceleration (11ms duration) and includes reverse polarity/overvoltage protection. Optional Modbus-RTU communication available through special order.
- Hydraulic press pressure monitoring systems
- CNC machine tool lubrication pressure feedback
- Plastic injection molding machine pressure control
- Compressed air system energy management
- Water treatment plant pump protection
- Medical sterilization equipment pressure verification
Installation guidelines:
Mount vertically with process connection downward to prevent media condensation in electronics chamber.
Use 17mm open-end wrench for port tightening (max 25N·m torque). Avoid installation near strong electromagnetic sources.
| Property | Property Value |
|---|---|
| sku | DPSN1B-01050 |
