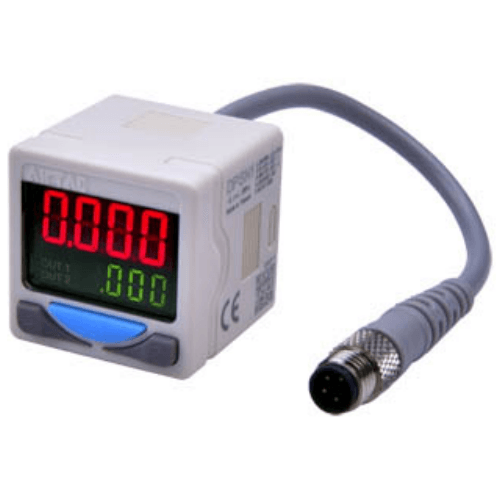

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1-01020
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPSP1-01020 Electronic Digital Pressure Sensor Specifications
- Model: DPSP1-01020
- Type: Digital display pressure sensor with analog output
- Pressure range: -0.1~1.0 MPa (customizable up to 10MPa)
- Accuracy: ±0.5% FS (typical), ±1.0% FS maximum
- Output signal: 4-20mA analog + RS485 Modbus (dual output)
- Display: 4-digit LED with 0.36" digit height
- Power supply: 12-28VDC (24VDC nominal)
- Current consumption: ≤25mA @24VDC
- Process connection: G1/4" female thread (NPT1/4 optional)
- Seal material: FKM fluorocarbon rubber
- Media temperature: -20℃ to 85℃
- Response time: ≤10ms
- Protection rating: IP67 (NEMA 4X equivalent)
- Housing material: Anodized aluminum alloy
- Weight: 280g ±5g (with mounting bracket)
- Dimensions: 96mm(W) × 48mm(H) × 35mm(D)
High-visibility industrial pressure sensor featuring dual redundant outputs and auto-calibration function. The shock-resistant design incorporates a 316L stainless steel diaphragm with anti-clogging port design. Certified for continuous operation in high-humidity environments (95% RH non-condensing).
- Hydraulic system pressure monitoring
- CNC machine tool lubrication systems
- Plastic injection molding machines
- Compressed air line monitoring
- Water treatment plant pressure control
- HVAC refrigerant pressure tracking
Installation note:
Mount in vibration-free locations using the included M4 mounting clips.
For liquid media applications, orient the sensor vertically with port facing downward
to prevent air bubble accumulation. Allow 30-second warm-up period after power-on
for stable readings.
| Property | Property Value |
|---|---|
| sku | DPSP1-01020 |
