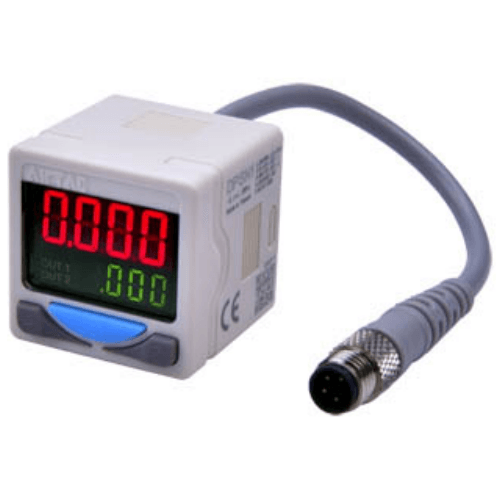

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1-01030
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Display Pressure Sensor DPSP1-01030 Technical Details
- Model: DPSP1-01030
- Type: Piezoresistive digital pressure sensor with LCD display
- Pressure range: -0.1~3.0 MPa (customizable to 10MPa)
- Accuracy: ±0.5% F.S. (25℃ reference)
- Output signal: 4-20mA analog + RS485 Modbus RTU (dual output)
- Supply voltage: 12-28V DC (18-26V recommended)
- Pressure port: G1/4" BSPP female thread (NPT1/4 optional)
- Display resolution: 0.001 MPa
- Refresh rate: 50ms sampling interval
- Operating temperature: -20℃~85℃ (non-condensing)
- Storage temperature: -30℃~100℃
- Protection rating: IP67 (front panel)/IP65 (housing)
- Housing material: Anodized aluminum alloy (EN AB-43000)
- Weight: 220±10g (with mounting bracket)
- Dimensions: 62mm(W) × 48mm(H) × 85mm(D)
- Cable length: 1.5m 4-core shielded cable (PUR jacket)
Industrial-grade pressure transducer featuring dual-output capability and 5-digit LCD with backlight. The shock-resistant design incorporates O-ring sealed stainless steel sensing element (316L) with thermal compensation. Zero/span calibration via front membrane buttons. Compatible with compressed air, inert gases, and non-corrosive fluids.
- Hydraulic system pressure monitoring
- CNC machine tool pneumatic circuits
- Industrial refrigeration pressure control
- Energy management systems (EMS)
- Automated test bench instrumentation
- Semiconductor manufacturing equipment
Installation guidelines:
Mount in vibration-free location using M4 screws (max torque 1.2N·m).
Maintain 10cm clearance behind display for cable bending radius.
Apply thread sealant on male ports - do not overtighten (recommended 12-15N·m).
