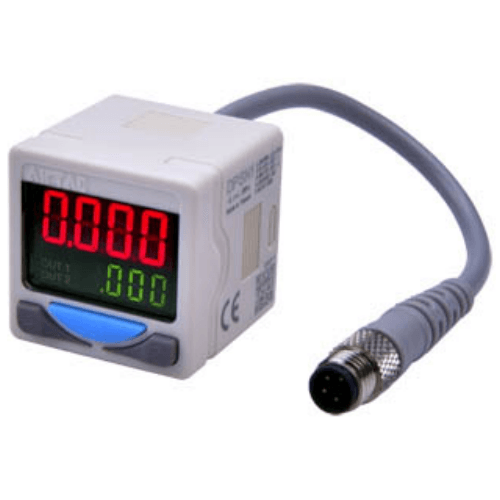

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1-01050
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1-01050 Specifications
- Model: DPSP1-01050
- Pressure range: 0-1.0 MPa (0-10 bar / 0-145 psi)
- Accuracy: ±1.0% F.S. (25℃ reference)
- Output signal: Dual mode 4-20mA analog + RS485 digital
- Display: 4-digit LED with 0.36" digit height
- Power supply: 24V DC ±10% (18-32V DC range)
- Process connection: G1/4" male thread (stainless steel 304)
- Protection rating: IP67 (front face)/IP65 (housing)
- Response time: ≤50ms (90% step response)
- Operating temperature: -20℃ to 70℃ (-4°F to 158°F)
- Storage temperature: -30℃ to 85℃ (-22°F to 185°F)
- Weight: 320g ±5% (including mounting bracket)
- Dimensions: 62mm(W) × 82mm(H) × 38mm(D)
- Housing material: PA66+GF (UL94 V-0 flame retardant)
- Media compatibility: Air, inert gases, hydraulic fluids (≤ISO VG32)
- Certifications: CE, RoHS, EMC Directive 2014/30/EU
Industrial-grade digital pressure sensor featuring dual output capability and rugged construction. The rotating display head (300° adjustable) enables flexible installation in confined spaces. Integrated surge protection and reverse polarity safeguard ensure reliability in harsh electrical environments. Calibration data stored in non-volatile memory.
- Real-time pressure monitoring in pneumatic circuits
- Hydraulic system overload protection
- Energy management systems for compressed air audits
- HVAC refrigerant pressure tracking
- Test bench instrumentation clusters
Installation guidelines:
Mount using M4 screws (max torque 1.2N·m). Avoid mounting in direct sunlight
or near heat sources. For liquid media applications, orient sensor vertically
with process connection downward to prevent air pocket accumulation.
