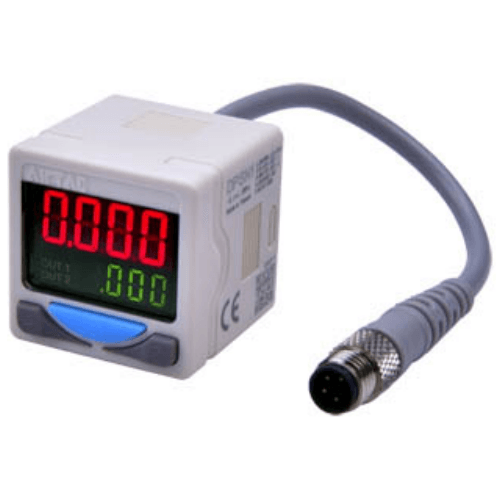

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1-10030
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1-10030 Technical Details
- Model: DPSP1-10030
- Type: Digital piezoresistive pressure sensor with OLED display
- Pressure range: -100kPa to 300kPa (compound range)
- Accuracy: ±0.5% F.S. (25℃ compensated)
- Output signals: 4-20mA analog + RS485 Modbus RTU
- Supply voltage: 12-36VDC (regulated power recommended)
- Display resolution: 0.1kPa (user-selectable units)
- Process connection: G1/4" male thread (stainless steel 304)
- Media temperature: -20℃ to 85℃ (compensated range)
- Response time: ≤5ms (90% step response)
- Protection rating: IP67 (water/oil resistant)
- Housing material: Anodized aluminum alloy
- Weight: 280g ±5g (with mounting bracket)
- Dimensions: 96mm(W) × 48mm(H) × 34mm(D)
High-visibility OLED display with 180° viewing angle features automatic sleep mode and peak hold function. The dual-output design enables simultaneous analog signal transmission and digital communication. Built-in temperature compensation ensures stability across industrial environments. Calibration certificates available upon request (NIST traceable).
- Vacuum pressure monitoring in semiconductor manufacturing
- Hydraulic system pressure feedback for injection molding machines
- Compressed air line monitoring with Modbus network integration
- Medical gas pressure verification systems
- Wind tunnel differential pressure measurement
Installation guidelines:
Mount vertically with display facing operator. Use 10-25Nm torque for process connection.
Allow 3-minute warm-up for thermal stabilization. Avoid silicone-based media without
protective diaphragm consultation.
- Baud rates: 1200-115200bps (default 9600)
- Parity: None/Even/Odd (user configurable)
- Address range: 1-247 (set via front panel)
- Data format: 8 data bits, 1 stop bit
