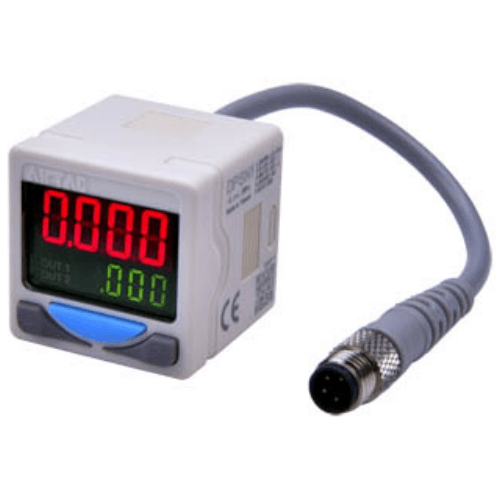

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1-10050
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPSP1-10050 Digital Pressure Sensor Technical Details
- Model: DPSP1-10050
- Type: Electronic digital display pressure sensor
- Pressure range: -0.1~50 MPa (customizable range available)
- Power supply: 12-30V DC (24V nominal)
- Current consumption: ≤25mA @24V DC
- Output signal: 4-20mA analog + RS485 Modbus RTU
- Accuracy: ±0.5% F.S. (25℃ reference)
- Display resolution: 0.01 MPa
- Operating temperature: -20℃~70℃
- Storage temperature: -30℃~85℃
- Protection class: IP67 (NEMA 4X equivalent)
- Port size: G1/4" BSPP female thread
- Wetted materials: 316L stainless steel diaphragm, Viton seals
- Response time: ≤10ms
- Weight: 320g ±5g (including cable connector)
- Dimensions: 76mm(W) × 76mm(H) × 42mm(D)
- Mounting: Panel mount (front flange) or direct thread installation
- Certifications: CE, RoHS, REACH compliant
Industrial-grade pressure transducer with dual-output capability, featuring a high-visibility 4-digit LED display with adjustable brightness. The shock-resistant aluminum alloy housing contains military-grade epoxy potting for vibration resistance up to 20g (10-2000Hz). Includes programmable alarm thresholds via built-in buttons.
- Hydraulic system pressure monitoring in injection molding machines
- Compressed air line pressure regulation for CNC equipment
- Process control in chemical dosing systems
- Energy management systems for industrial chillers
- Test bench instrumentation for automotive brake systems
Installation advice:
Use Teflon tape on threads and tighten to 15-20 N·m torque. For pulsating media,
install a snubber valve upstream. Calibrate monthly in high-cycling applications.
- Electrical connection: M12×1 5-pin waterproof connector
- Optional accessories: 316SS isolation diaphragm, DIN rail mount kit
- Software: Compatible with AirTAC PCS-100 monitoring suite
| Property | Property Value |
|---|---|
| sku | DPSP1-10050 |
