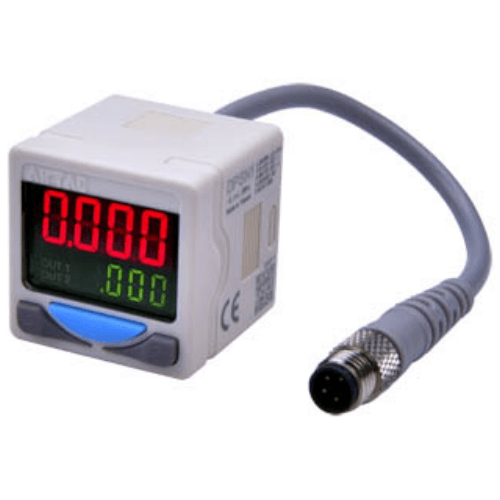

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1B-01020
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1B-01020 Specifications
- Model: DPSP1B-01020
- Pressure range: 0–10 bar (0–145 psi)
- Accuracy: ±0.5% F.S. (25℃ reference)
- Power supply: 12–24 VDC (±10%)
- Output signal: 4–20mA analog + RS485 Modbus (dual output)
- Display: 4-digit LED with 0.36" digit height
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Storage temperature: -30℃ to 85℃
- Protection rating: IP67 (NEMA 4X equivalent)
- Electrical connection: M12-4pin connector (IP67 rated)
- Pressure port: G1/4" female thread (stainless steel 304)
- Housing material: Anodized aluminum alloy
- Response time: ≤10ms
- Zero/span adjustment: Front-panel tactile buttons
- Weight: 280g (with mounting bracket)
- Dimensions: 60mm(W) × 40mm(D) × 30mm(H)
- Compliance: CE, RoHS, EMC Directive 2014/30/EU
Industrial-grade digital pressure sensor with dual output capability, engineered for precision measurement in harsh environments. Features a shock-resistant aluminum housing and anti-vibration design (up to 10G acceleration tolerance). The rotating display allows 300° adjustment for optimal visibility. Includes built-in temperature compensation (0–60℃) and reverse polarity protection.
- Hydraulic system pressure monitoring
- CNC machine tool lubrication systems
- Plastic injection molding pressure control
- Industrial chillers and HVAC refrigerant circuits
- Pneumatic conveyor line pressure feedback
- Energy storage system gas pressure detection
Installation note:
Mount using the integrated M4 threaded holes (50mm spacing). Avoid installation near high-frequency vibration sources.
Perform initial calibration after 30-minute warm-up period. Max cable length: 500m (RS485)/100m (analog).
| Property | Property Value |
|---|---|
| sku | DPSP1B-01020 |
