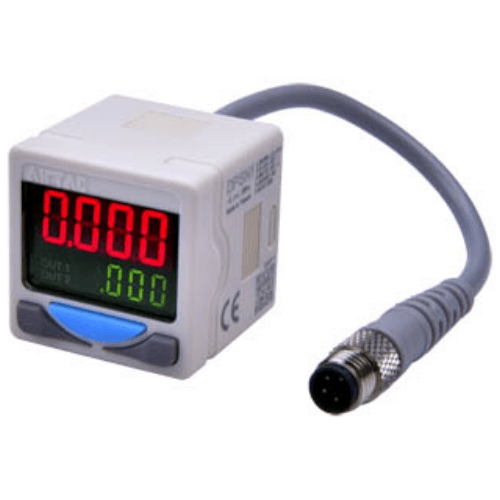

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1B-01050
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1B-01050 Specifications
- Model: DPSP1B-01050
- Type: Electronic digital display pressure sensor (gauge pressure)
- Pressure range: 0–10 Bar (0–1.0 MPa) / 0–145 PSI optional
- Accuracy class: ±0.5% F.S. (25℃ reference)
- Output signal: Dual output – 4–20mA analog + RS485 Modbus RTU
- Power supply: 24V DC ±10% (18–32V DC range)
- Display: 4-digit LED with red backlight (0.36" height)
- Resolution: 0.01 Bar / 0.1 PSI switchable
- Response time: ≤10ms (90% step response)
- Process connection: G1/4B female thread (stainless steel)
- Seal material: Fluororubber (FKM)
- Media compatibility: Air, non-corrosive gases, hydraulic fluids (≤ISO VG46)
- Protection rating: IP65 (front panel)/IP40 (housing)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Storage temperature: -30℃ to 85℃
- Housing material: Anodized aluminum alloy (black)
- Weight: 320g ±5% (with cable connector)
- Dimensions: 80mm(W) × 40mm(H) × 30mm(D)
- Certifications: CE, RoHS, EMC Directive 2014/30/EU
High-visibility industrial pressure monitor with dual-output capability, featuring military-grade shock resistance (up to 20G) and automatic temperature compensation. The rotating display head (±210° adjustment) enables flexible installation. Includes built-in peak hold function and programmable alarm thresholds via Modbus interface.
- Hydraulic power unit pressure monitoring
- CNC machine tool lubrication systems
- Plastic injection molding machines
- Compressed air system energy audits
- Water treatment plant pump controls
- Wind turbine hydraulic pitch systems
Installation guidelines:
Mount vertically with process port downward. Use 5Nm torque for connection.
Maintain 50mm clearance around display for visibility. Apply thread sealant
only on male connections (not included). Perform zero calibration after 24hrs
of continuous operation.
| Property | Property Value |
|---|---|
| sku | DPSP1B-01050 |
