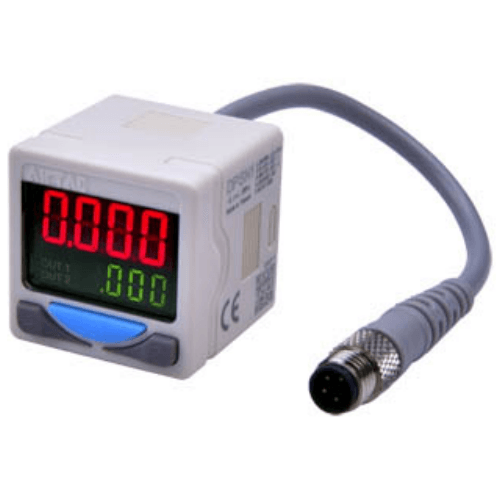

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1B-10020
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1B-10020 Specifications
- Model: DPSP1B-10020
- Type: Electronic digital pressure sensor with LCD display
- Pressure range: -0.1~1.0 MPa (-14.5~145 psi)
- Accuracy: ±0.5% F.S. (25℃ calibration)
- Power supply: 12-24VDC ±10% (Ripple P-P ≤10%)
- Output signal: 4-20mA / 0-10V / RS485 (Modbus RTU protocol)
- Media temperature: -20℃ to 85℃ (-4°F to 185°F)
- Ambient temperature: -20℃ to 60℃ (-4°F to 140°F)
- Protection rating: IP65 (Front face), IP40 (Housing)
- Electrical connection: M12-4pin connector (A-coded)
- Process connection: G1/4" BSPP female thread
- Display resolution: 0.001 MPa (switchable units: kPa, bar, psi)
- Sampling rate: 10 times/sec
- Warm-up time: ≤2 minutes
- Housing material: PA66+GF (UL94 V-0)
- Seal material: FKM fluorocarbon rubber
- Weight: 320g ±5% (including connector)
- Dimensions: 82mm(L) × 42mm(W) × 38mm(H)
High-visibility LCD pressure sensor with multi-protocol output, featuring auto-dimming display and peak hold function. The stainless steel sensing element ensures long-term stability in aggressive media. Includes programmable alarm thresholds via push-button interface. Requires 5-95% non-condensing humidity environment.
- Hydraulic system pressure monitoring
- Pneumatic pressurization control in assembly lines
- Industrial chillers and refrigeration units
- CNC machine tool lubrication systems
- EV battery pack pressure testing rigs
Installation guidelines:
Mount in vibration-free locations using the dual M4 mounting holes.
Maintain 50mm clearance behind display for cable routing.
Use thread seal tape on male ports - DO NOT overtighten (max 15N·m torque).
Perform zero-point calibration after 500 operating hours.
