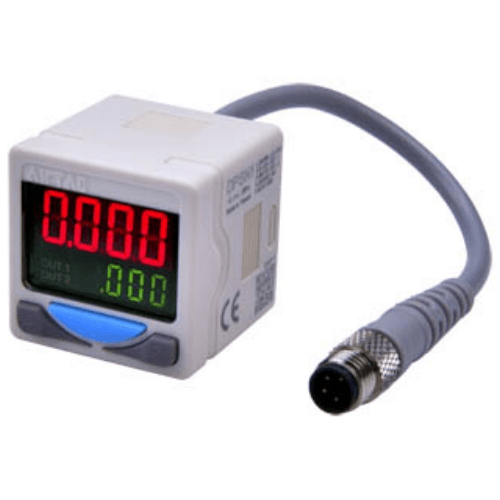

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1B-10030
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1B-10030 Technical Details
- Model: DPSP1B-10030
- Type: Piezoresistive digital display pressure sensor
- Pressure range: 0-30 bar (0-4.35 psi)
- Output signal: Dual output 4-20mA + 0.5-4.5V (simultaneous)
- Accuracy: ±0.5% FS (25℃) / ±1.5% FS (-20-85℃)
- Display: 4-digit LED with 0.36" digit height
- Power supply: 12-24V DC ±10% (reverse polarity protected)
- Current consumption: ≤25mA @24V DC
- Response time: ≤3ms (90% of full scale)
- Port size: G1/4B female thread (NPT1/4 optional)
- Medium temperature: -20℃ to 85℃
- Storage temperature: -30℃ to 100℃
- Protection rating: IP67 (housing) / IP65 (display)
- Housing material: Anodized aluminum alloy
- Seal material: FKM fluororubber
- Weight: 340g ±5g (with mounting bracket)
- Dimensions: 78mm(L) × 46mm(W) × 38mm(H)
High-stability pressure transducer with NIST-traceable calibration, featuring automatic temperature compensation (ATC) and overload protection up to 150% FS. The rotating display head allows 300° adjustment for optimal visibility. Includes programmable alarm thresholds via membrane keypad.
- Hydraulic power unit pressure monitoring
- CNC machine tool lubrication systems
- Plastic injection molding machines
- Industrial chillers refrigerant control
- Test bench instrumentation clusters
Installation guidelines:
Mount in vibration-free location using 6mm anti-shock washers.
For liquid media, orient vertically with port downward.
Allow 2-minute warm-up for thermal stabilization before calibration.
