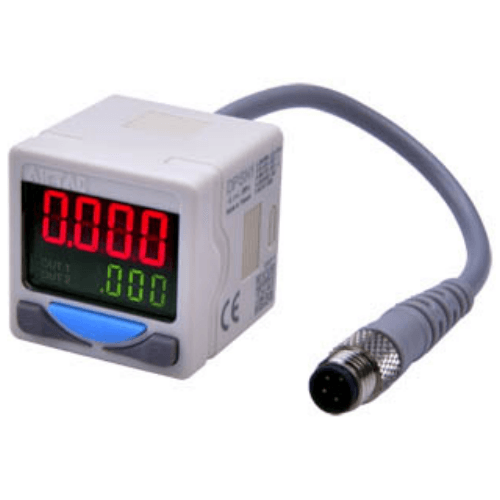

Airtac DPS Electronic Digital Display Pressure Sensor DPSP1B-10050
2. The tensile strength of connecting cables is 60N - exceeding this limit may result in operational failures.
3. Pneumatic port fittings have a torsional resistance of 7N·m - forces beyond this threshold may compromise sealing integrity and cause system failures.
4. Not suitable for use with corrosive, flammable gases, or liquid media.
5. Ensure operating pressure remains within rated specifications to prevent product damage.
6. Deactivate power supply during circuit wiring - incorrect connections or short circuits may cause permanent damage.
7. Avoid installation in environments with moisture or oil mist contamination.
8. Separate signal cables from power lines and high-voltage wiring during installation to prevent electromagnetic interference.
Category: Pressure Sensors | Brand: AirTAC | Series: DPS Electronic Digital Pressure Sensor
AirTAC DPS Electronic Digital Pressure Sensor DPSP1B-10050 Technical Details
- Model: DPSP1B-10050
- Type: Piezoresistive digital display pressure sensor
- Pressure range: 0-50 MPa (7251.89 psi)
- Accuracy: ±0.5% F.S. (25℃ reference)
- Display: 4-digit LED with 0.36" character height
- Output signal: Dual output - 4-20mA analog + RS485 Modbus
- Power supply: 12-36VDC (24VDC nominal)
- Operating temp: -20℃ to 85℃ (-4°F to 185°F)
- Storage temp: -40℃ to 100℃
- Process connection: G1/4" female thread (NPT optional)
- Pressure medium: Hydraulic oils, compressed air, water
- Response time: ≤10ms
- IP rating: IP67 (water/dust resistant)
- Housing material: 316L stainless steel body
- Weight: 480g (1.06 lbs) with cable
- Dimensions: 96mm(L) × 42mm(W) × 32mm(H)
- Certifications: CE, RoHS, EMC Directive
High-performance industrial pressure sensor featuring shock-resistant construction and auto-zero calibration. The dual-sealed stainless steel housing withstands vibration up to 20g (10-2000Hz). Includes programmable alarm thresholds via front-panel buttons. Requires 60μm filtered media with maximum viscosity 50cSt.
- Hydraulic power unit pressure monitoring
- Injection molding machine barrel pressure control
- CNC machine tool lubrication systems
- Compressed air line pressure logging
- Test bench calibration systems
Configuration tip:
Use shielded twisted pair cables for analog output with grounding at controller side only.
Allow 3-minute warm-up for optimal accuracy. Calibration cycle recommended every 5,000 operating hours.
| Property | Property Value |
|---|---|
| sku | DPSP1B-10050 |
