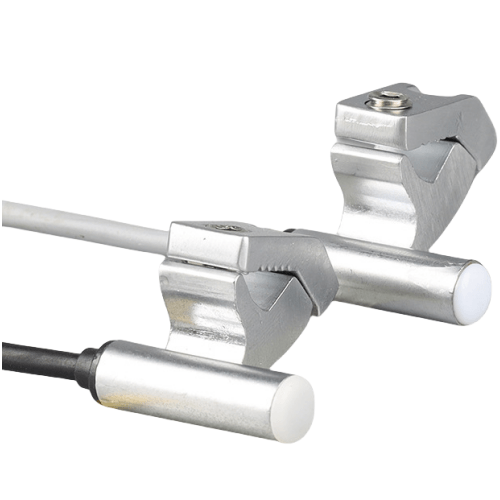

Airtac DS1A Electronic Sensor DS1AP020
2. Its architecture comprises four core components: a temperature-sensing probe, signal processing unit, digital display interface, and regulated power supply system.
3. The thermal probe employs one or multiple high-precision, fast-response thermistors as its primary sensing elements, whose performance directly determines temperature output accuracy and system response characteristics in critical measurement applications.
AirTAC DS1A Series Electronic Sensor DS1AP020 Technical Specifications
- Model: DS1AP020
- Type: Inductive proximity sensor (shielded)
- Detection Distance: 2mm ±10%
- Output Configuration: NPN normally open (NO)
- Supply Voltage: DC 10-30V (±10% ripple)
- Current Consumption: ≤15mA @ 24VDC
- Response Time: ≤0.5ms (on/off)
- Hysteresis: ≤15% of detection distance
- Protection Rating: IP67 (IEC 60529)
- Housing Material: Nickel-plated brass
- Sensing Face: PBT plastic (glass fiber reinforced)
- Temperature Range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Connection: 2m PVC cable (3-wire), Ø4mm diameter
- Vibration Resistance: 10-55Hz @ 1.5mm amplitude
- Shock Resistance: 1000m/s² (3-axes)
- Weight: 95g ±3%
- Dimensions: 34mm(L) × 18mm(W) × 10mm(H)
High-precision inductive sensor featuring temperature-compensated circuitry for stable detection of metallic targets. The recessed sensing face design prevents physical damage in harsh environments. Built-in reverse polarity protection and short-circuit prevention. Requires metal target thickness ≥1mm (steel) with recommended approach direction parallel to sensor face.
- Position verification in pneumatic cylinder end stops
- Metal part counting in assembly conveyor systems
- Tool presence detection in CNC machining centers
- Safety interlock systems for automated doors
- Position feedback in packaging machine actuators
Installation guidelines:
Maintain 2x sensor diameter clearance from adjacent metal surfaces.
For aluminum targets, reduce effective sensing distance by 40%.
Use M18x1 mounting nut (stainless steel) with 5-15Nm torque.
| Property | Property Value |
|---|---|
| sku | DS1AP020 |
