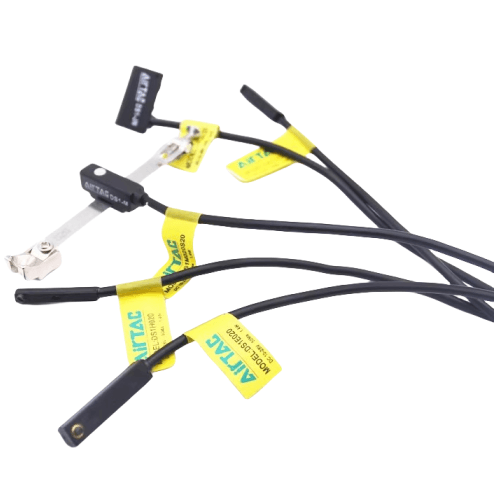

Airtac DS1E Electronic Sensor DS1EN020
2. Its architecture comprises four core components: a temperature sensing probe, signal processing unit, digital display interface, and power supply module.
3. The thermal sensing probe employs one or multiple high-precision thermistors with rapid response characteristics, serving as the critical sensing element that directly determines measurement accuracy and system response speed in temperature output.
AirTAC DS1E Electronic Proximity Sensor DS1EN020 Technical Details
- Model: DS1EN020
- Type: Inductive proximity sensor (NO/NC configurable)
- Sensing distance: 2mm ±10% (flush-mountable)
- Output type: NPN/PNP dual output (selectable via wiring)
- Supply voltage: 10-30V DC (ripple ≤10%)
- Current consumption: ≤15mA
- Response frequency: 1kHz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC 60529)
- Housing material: Nickel-plated brass (sensing face: PBT)
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Connection: 2m PVC cable (M8x1 connector optional)
- Weight: 85g ±3g
- Dimensions: 18mm(D) × 34mm(W) × 34mm(H)
High-precision industrial proximity sensor with temperature compensation circuitry, designed for reliable metal object detection in harsh environments. Features reverse polarity protection and short-circuit prevention. The shielded design minimizes electromagnetic interference in multi-sensor setups.
- CNC machine tool position verification
- Robotic end-effector status monitoring
- Conveyor system part counting
- Hydraulic cylinder piston position detection
- Food processing equipment safety interlocks
Installation guidelines:
Maintain 3x sensor diameter clearance from adjacent metal surfaces.
For optimal performance, clean sensing face weekly with isopropyl alcohol
and verify alignment tolerance (±5° maximum angular deviation).
| Property | Property Value |
|---|---|
| sku | DS1EN020 |
