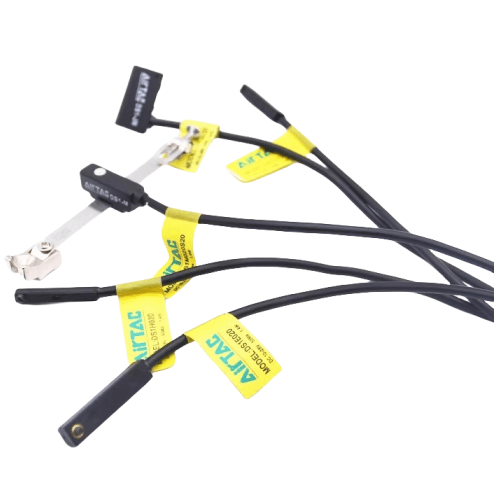

Airtac DS1E Electronic Sensor DS1EP030
2. Its architecture comprises four core components: a temperature sensing probe, signal processing unit, digital display interface, and power supply module.
3. The thermal sensing probe employs one or multiple high-precision thermistors with rapid response characteristics, serving as the critical sensing element that directly determines measurement accuracy and system response speed in temperature output.
AirTAC DS1E Electronic Sensor DS1EP030 Technical Specifications
- Model: DS1EP030
- Type: Inductive proximity sensor (non-contact)
- Detection distance: 30mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: DC 12-24V (±10% ripple)
- Current consumption: ≤15mA (without load)
- Response time: ≤1ms
- Protection rating: IP67 (IEC 60529)
- Housing material: Nickel-plated brass
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Connection type: M12 × 1 4-pin connector
- Cable length: 2m standard (shielded PUR cable)
- Weight: 235g ±5g
- Dimensions: 34mm(Dia) × 80mm(L) × 34mm(W)
- Hysteresis: ≤15% of detection distance
- Repeatability: ±2% of detection distance
High-precision industrial-grade inductive sensor featuring temperature compensation circuitry for stable detection in harsh environments. The triple-shielded design prevents electromagnetic interference from VFDs and welding equipment. Built-in reverse polarity protection and overload/short-circuit safeguards.
- Position verification in CNC machine tool changers
- Pallet presence detection in automated warehouses
- Metal part counting in assembly lines
- Safety interlock systems for heavy machinery
- Conveyor belt jam detection systems
Installation guidelines:
Maintain minimum 2× sensor diameter clearance between adjacent units.
For ferrous metal detection, reduce nominal sensing distance by 10-15%.
Use M12 mounting nuts with 55-60N·m torque for vibration resistance.
| Property | Property Value |
|---|---|
| sku | DS1EP030 |
