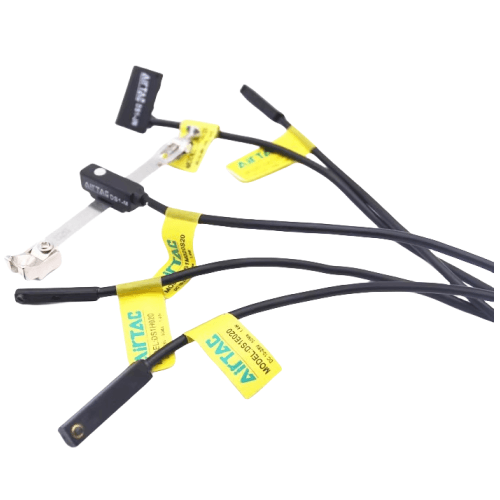

Airtac DS1E Electronic Sensor DS1EP100
2. Its architecture comprises four core components: a temperature sensing probe, signal processing unit, digital display interface, and power supply module.
3. The thermal sensing probe employs one or multiple high-precision thermistors with rapid response characteristics, serving as the critical sensing element that directly determines measurement accuracy and system response speed in temperature output.
AirTAC DS1E Electronic Sensor DS1EP100 Technical Details
- Model: DS1EP100 (DC3-wire type)
- Detection type: Non-contact inductive sensor
- Sensing distance: 10mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: 12-24VDC (±10% ripple)
- Current consumption: ≤15mA
- Output current: ≤200mA
- Response time: ≤1ms
- Hysteresis: ≤15% of sensing distance
- Operating frequency: 100Hz
- Protection class: IP67 (IEC standard)
- Housing material: Stainless steel (sensing face) + PBT plastic
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Connection: M8 3-pin connector (pre-wired 2m cable optional)
- Weight: 220g ±5%
- Dimensions: 50mm(L) × 25mm(W) × 15mm(H)
High-precision industrial proximity sensor with temperature-compensated circuitry for stable detection in harsh environments. Features reverse polarity protection and short-circuit prevention. The stainless steel face resists mechanical wear and chemical corrosion, making it ideal for metal object detection in automated systems.
- Position verification in CNC machine tool changers
- Pallet presence detection in conveyor systems
- End-of-stroke confirmation in pneumatic cylinders
- Safety interlocks in automated packaging lines
- Object counting in automotive assembly processes
Installation guidelines:
Maintain 2x sensing distance between adjacent sensors (≥20mm spacing).
Clean metallic debris regularly using isopropyl alcohol. For optimal performance,
ground metal mounting surfaces to prevent EMI interference.
| Property | Property Value |
|---|---|
| sku | DS1EP100 |
