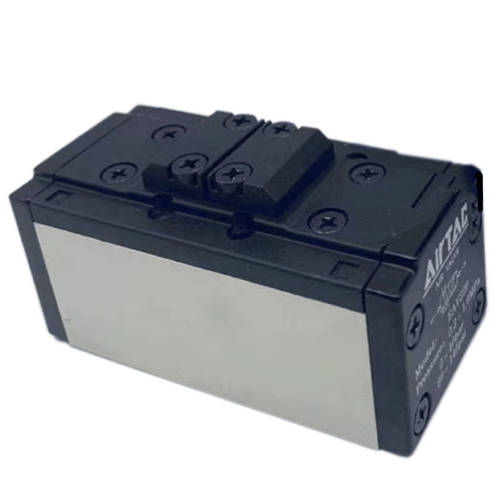

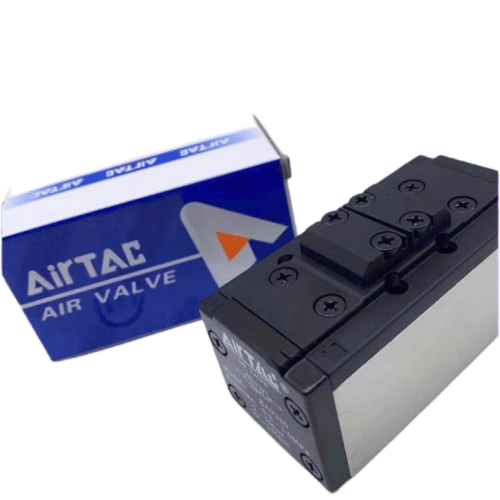

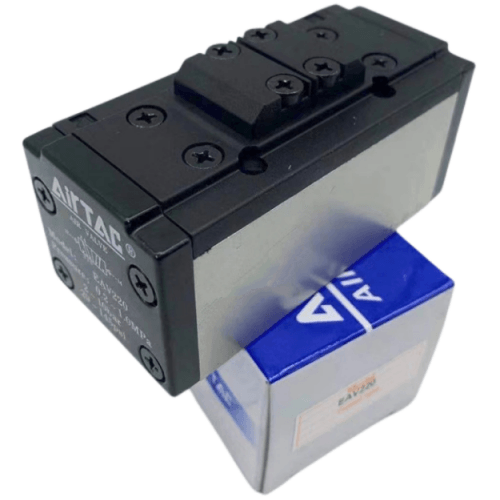

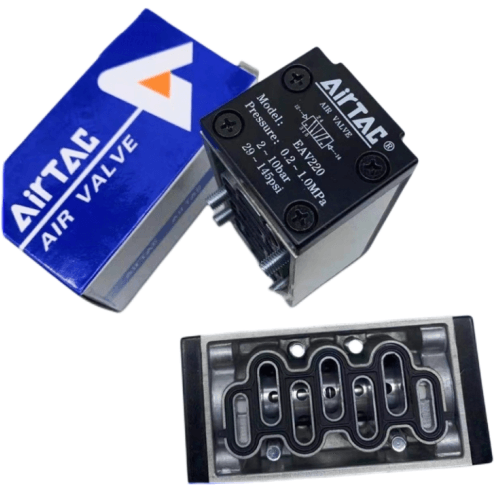

Airtac EAV Standard Pneumatic Control Valve EAV210
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

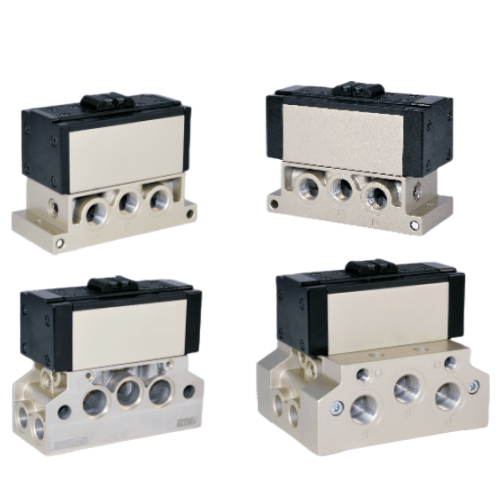

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV210 Standard Pneumatic Valve Technical Details
- Model: EAV210 Series (Base configuration)
- Valve type: 5/2-way, double solenoid or single solenoid (optional)
- Port thread: PT1/4" (G1/4" BSPP standard)
- Operating pressure range: 0.1–0.9 MPa (14.5–130.5 PSI)
- Voltage variants: DC12V/24V, AC110V/220V (50/60Hz compatible)
- Weight: 280g ±5g (without accessories)
- Dimensions: 58mm(L) × 42mm(W) × 68mm(H)
- Seal material: Heat-resistant NBR (Viton available for high-temp versions)
- Ambient temperature: -20℃ to 70℃ (extended to 120℃ with Viton seals)
- Response time: ≤15ms (at 0.5MPa)
- Flow capacity: 850 l/min (Cv=1.2 at 0.5MPa)
- Protection class: IP67 (dust/water resistant)
- Manual override: Optional paddle-type actuator
High-flow directional control valve with optimized spool design for reduced air consumption. Features dual-color position indicator and metal-body construction for industrial durability. Requires ISO 8573-1 class 3 compressed air (40μm filtration recommended). Compatible with vacuum applications when paired with EVA series accessories.
- Stamping machine cylinder control
- Automated material handling systems
- Plastic injection molding ejectors
- Textile machinery air circuits
- Food processing pneumatic actuators (NBR version)
Installation guidelines:
Mount in vibration-free environment using M5 mounting screws (max torque 1.2N·m).
Maintain minimum 15mm clearance below valve for exhaust airflow. Lubricate with ISO VG32
turbine oil if using non-lubricated air systems. Perform monthly manual cycling for
valves in continuous duty applications.
| Property | Property Value |
|---|---|
| sku | EAV210 |
| Pneumatic Control Type | Double position single pneumatic pilot |
