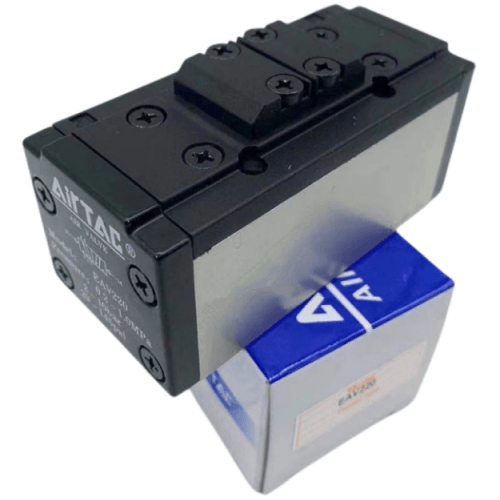

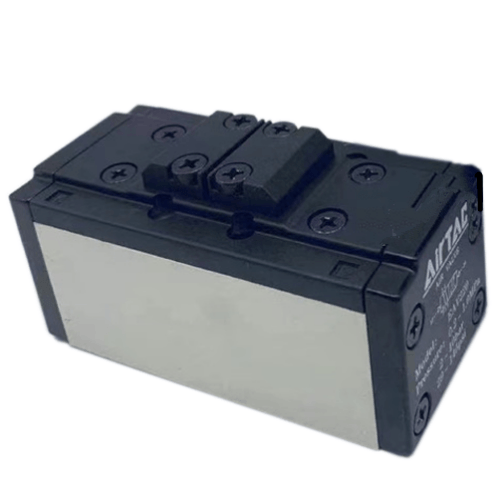

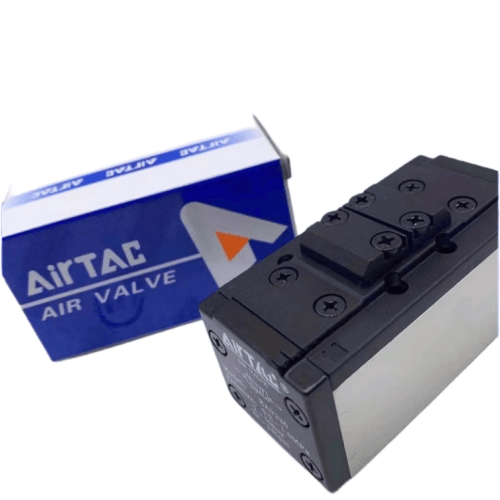

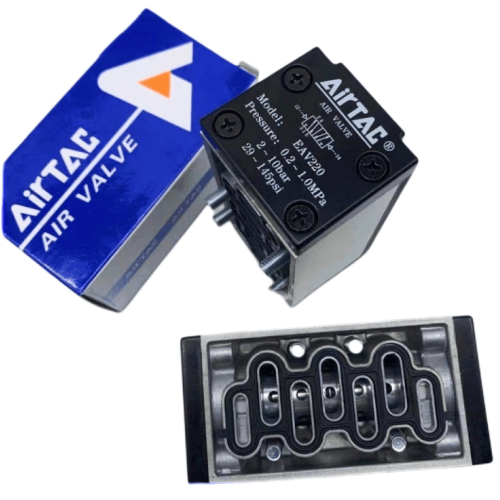

Airtac EAV Standard Pneumatic Control Valve EAV220
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;
5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV220 Standard Pneumatic Valve Technical Details
- Model: EAV220-02 (Base configuration)
- Type: 5/2-way pneumatic control valve (Double solenoid)
- Port size: 1/4" NPT standard (G1/4 optional)
- Operating pressure range: 0.2–1.0 MPa (29–145 PSI)
- Voltage variants: 24VDC (±10%), 110VAC 50/60Hz, 220VAC 50Hz
- Weight: 680g ±2% (without accessories)
- Dimensions: 58mm(W) × 45mm(H) × 135mm(L)
- Seal material: Heat-resistant HNBR (-15℃ to 120℃)
- Flow capacity: 850 l/min (ANR) at 0.5MPa
- Response time: ≤35ms (at rated voltage)
- Protection class: IP67 (dust/water resistant)
- Manual override: Built-in emergency switch
- Mounting: ISO 5599-1 compliant sub-base
High-flow directional control valve with dual electrical/pneumatic operation modes. Features anti-vibration coil design and zero pressure differential start capability. The aluminum alloy body with hard anodized treatment ensures durability in humid environments. Requires ISO 8573-1:2010 Class 3 compressed air quality.
- Automated assembly line cylinder sequencing
- Plastic injection molding machine clamp control
- CNC machine tool chuck actuators
- Food processing pneumatic systems (lubricant-free version available)
- Elevator brake emergency release mechanisms
Maintenance note:
Lubricate spool monthly with ISO VG32 pneumatic oil when used in high-cycle
applications (>500,000 cycles/month). Avoid angular mounting beyond 15°
from vertical position.
- EAC220-01: Speed controller kit
- EAV220-SC: Silencer for exhaust ports
- EAV220-BK: Bracket for horizontal mounting
| Property | Property Value |
|---|---|
| sku | EAV220 |
| Pneumatic Control Type | Double Position, Double Air Pilot |
