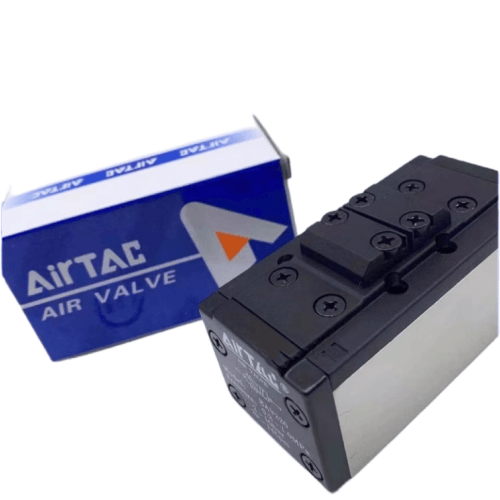

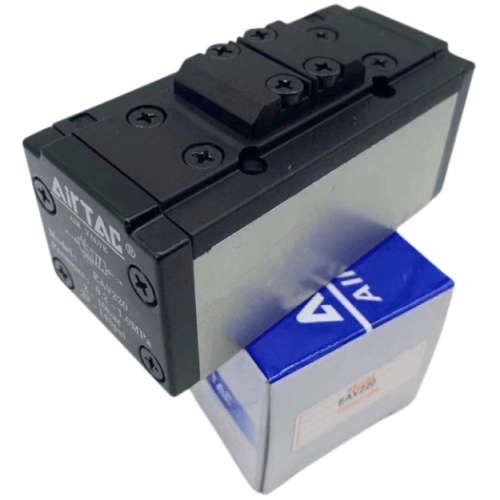

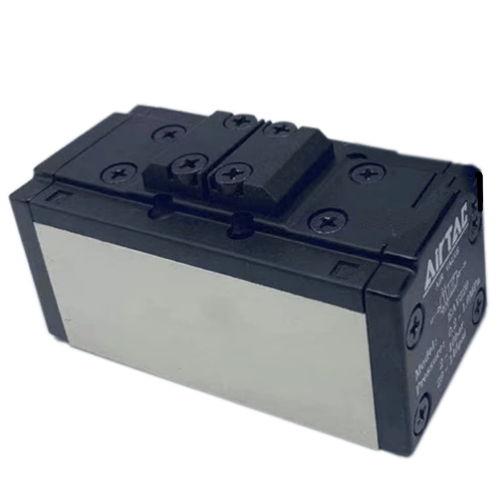

Airtac EAV Standard Pneumatic Control Valve EAV230C
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

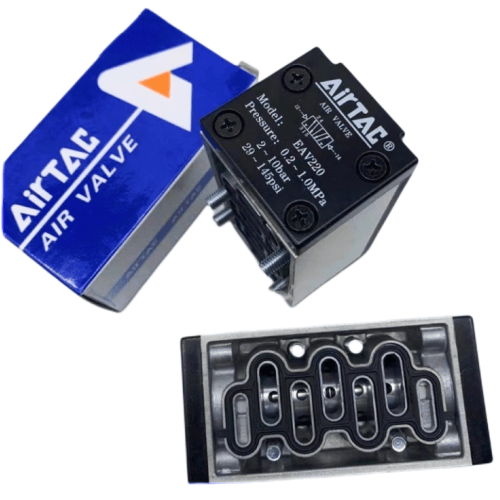

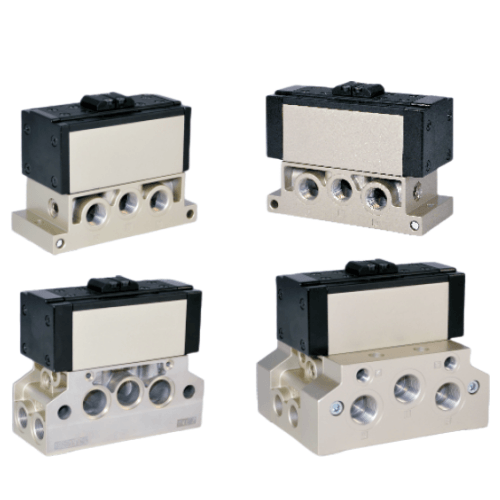

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV230C Standard Pneumatic Valve Technical Details
- Model: EAV230C
- Type: 5/2-way pneumatic pilot operated (double solenoid optional)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation: Air pilot required (0.3 MPa minimum control pressure)
- Voltage options (solenoid version): DC24V (±10%), AC110V/220V (±15% 50/60Hz)
- Weight: 320g ±5% (excluding accessories)
- Dimensions: 70mm(L) × 40mm(W) × 82mm(H)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: NBR (Nitrile) standard, optional FKM/Viton for high temp
- Temperature range: -20℃ to 80℃ (NBR seals), -10℃ to 150℃ (FKM optional)
- Response time: ≤20ms (open), ≤15ms (close) at 0.5 MPa
- Port thread standard: ISO 228/1 (G-series)
- Protection rating: IP65 (solenoid version)
- Cycle life: ≥10 million operations
High-flow directional control valve featuring low pilot consumption and zero pressure differential operation. The balanced spool design ensures stable switching even under vibration conditions. Compatible with ISO 5599/1 mounting interfaces for easy system integration. Requires 5μm filtered lubricated or non-lubricated air (40μm max particle size).
- Automated assembly line cylinder control
- Plastic injection molding machine actuators
- Textile machinery sequence control
- Food processing equipment (FDA-compliant versions available)
- Packaging machine clamp mechanisms
- Automotive tire assembly systems
Installation guidelines:
Mount using ISO 4400 standard subplates. Maintain ambient temperature below 60℃.
For horizontal mounting, install exhaust silencers vertically downward.
Lubricate air supply if operating below 0.3 MPa.
| Property | Property Value |
|---|---|
| sku | EAV230C |
| Pneumatic Control Type | Three-position double air-piloted center closed type |
