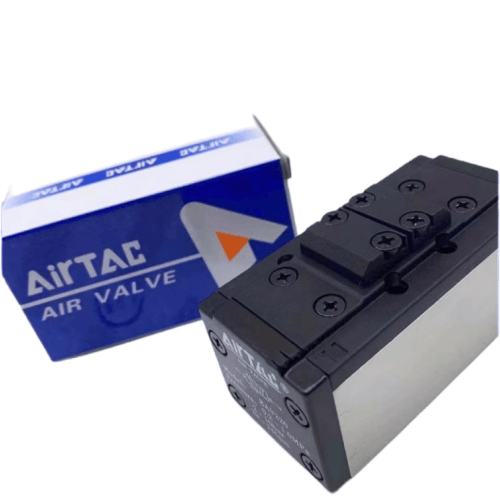

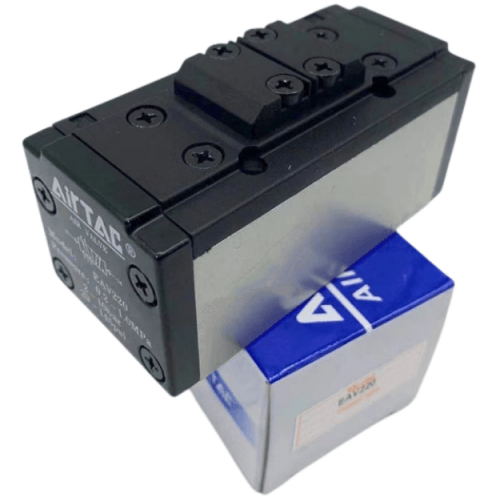

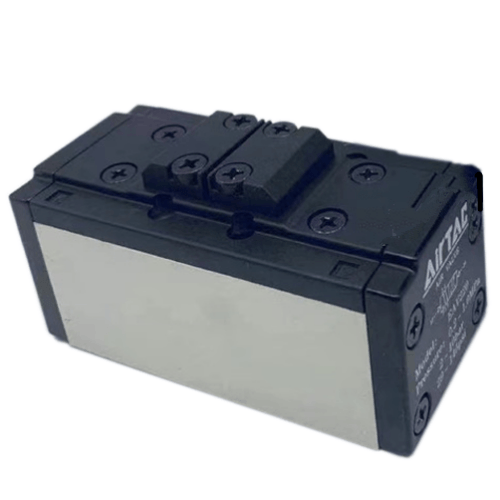

Airtac EAV Standard Pneumatic Control Valve EAV230P
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

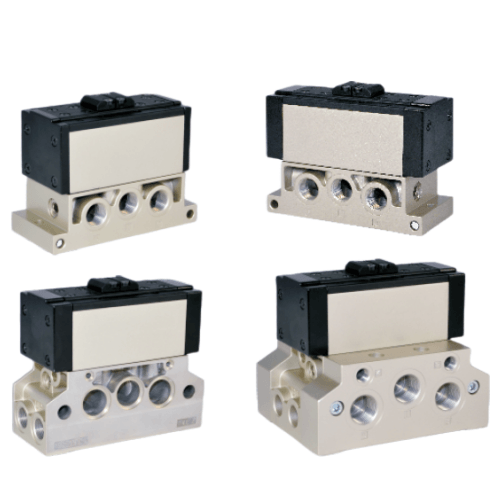

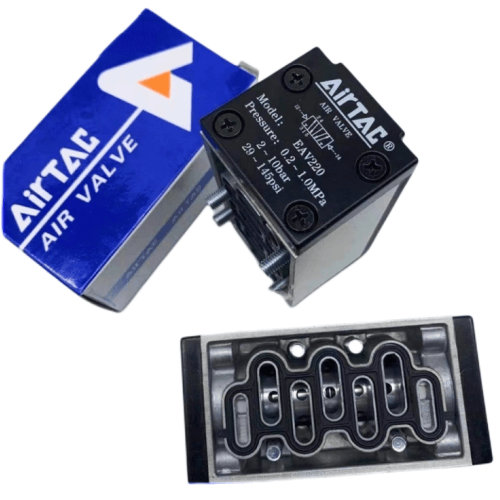

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV230P Standard Pneumatic Valve Technical Details
- Model: EAV230P
- Type: 5/2-way pilot-operated (double solenoid)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.2–0.8 MPa
- Voltage variants: DC12V, DC24V, AC110V, AC220V (coil interchangeable)
- Weight: 320g ±5g
- Dimensions: 54mm(L) × 54mm(W) × 50mm(H)
- Valve body material: Reinforced PBT resin
- Seal material: Heat-resistant NBR (-5℃ to 120℃)
- Operating temperature: -5℃ to 60℃ (with lubricated air)
- Response time: ≤30ms (at 0.5MPa)
- Flow capacity: 850 l/min (Cv=1.2)
- Protection class: IP67 (coil), IP40 (valve body)
- Port thread depth: 12mm (minimum engagement)
High-flow directional control valve with dual electrical/pneumatic signals, featuring dust-resistant plunger design and manual override capability. The corrosion-resistant construction with metal-free sliding parts ensures maintenance-free operation in humid environments. Requires ISO 8573-1 class 3 compressed air (40μm filtration).
- Precision control of double-acting cylinders in assembly lines
- High-cycle pneumatic presses (up to 5 million operations)
- Plastic injection molding machine clamp control
- Automated packaging systems with position feedback
- Robotic arm end-effector actuation
Installation guidelines:
Mount in vibration-free area using M5 mounting screws (2.5Nm torque limit).
Maintain 15mm clearance below valve for exhaust airflow. Lubricate air supply
(ISO VG32) extends service interval to 50 million cycles.
| Property | Property Value |
|---|---|
| sku | EAV230P |
| Pneumatic Control Type | Three-position double pilot operated center pressure type |
