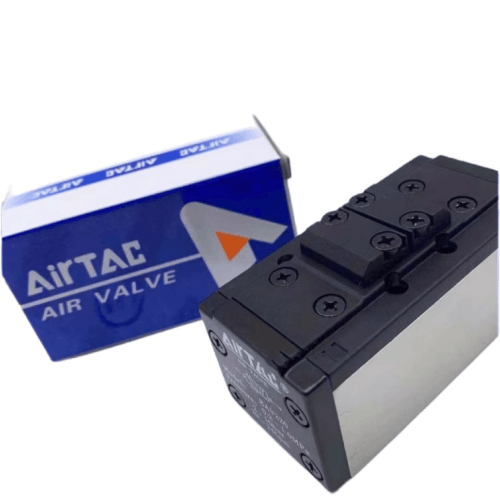

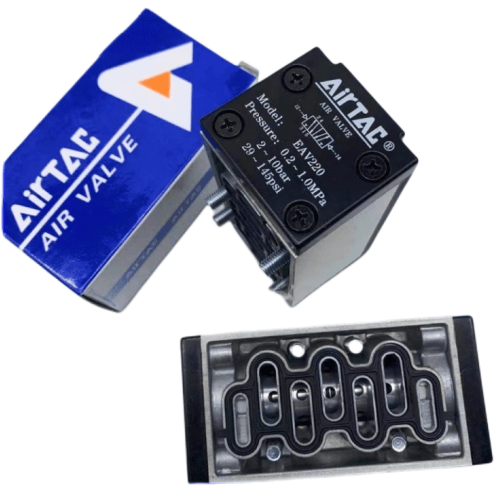

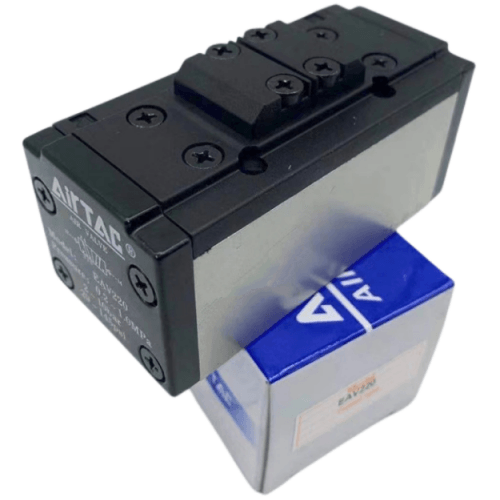

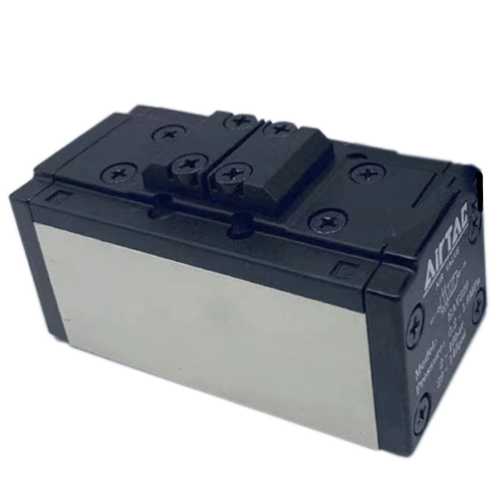

Airtac EAV Standard Pneumatic Control Valve EAV310
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

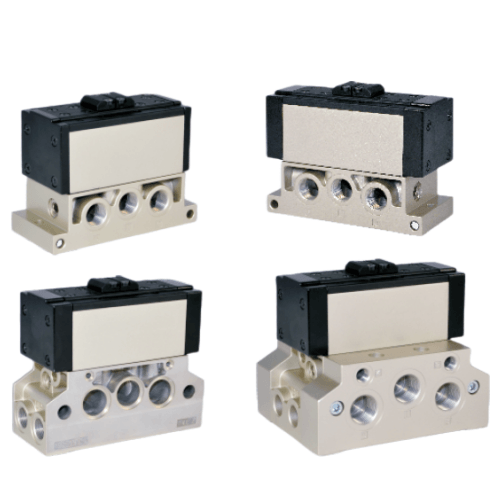

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV310 Standard Pneumatic Control Valve Technical Details
- Model: EAV310
- Type: 5/2-way pilot-operated (double solenoid)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.2–1.0 MPa
- Voltage variants: DC12V, DC24V, AC110V, AC220V (±10%)
- Weight: 320g ±5g (including connectors)
- Dimensions: 58mm(L) × 32mm(W) × 72mm(H)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature tolerance: -10℃ to 80℃ (non-freezing)
- Flow capacity: 750 l/min (ANR at 0.5MPa)
- Response time: ≤50ms (at rated voltage)
- Protection class: IP67 (dust/water resistant)
- Port thread depth: 10mm (4 full threads)
High-flow directional control valve with dual electrical control, engineered for demanding pneumatic circuits requiring precise bi-directional actuation. Features gold-plated terminals for oxidation resistance and a reinforced polycarbonate coil housing. Requires 5μm filtered compressed air with oil mist lubrication recommended for extended service life.
- Automated assembly line cylinder sequencing
- Plastic injection molding machine clamp control
- Textile machinery pneumatic logic systems
- Robotic arm end-effector operations
- CNC machine tool chuck actuators
Mounting guidelines:
Install with manifold base (e.g., EAV-MB04) for multi-valve configurations.
Maintain 20mm clearance below valve for tubing access. Lubricate spool monthly
in high-cycle applications (>5,000 operations/day).
| Property | Property Value |
|---|---|
| sku | EAV310 |
| Pneumatic Control Type | Double position single pneumatic pilot |
