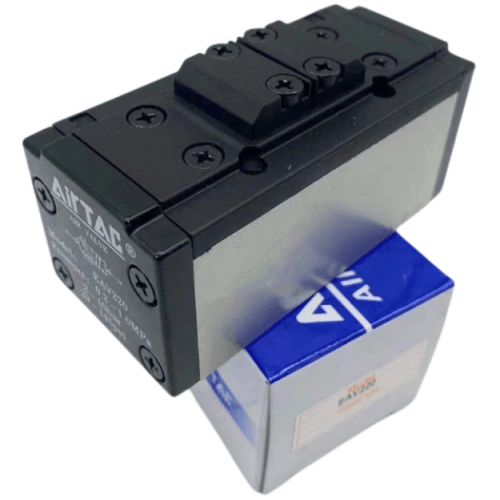

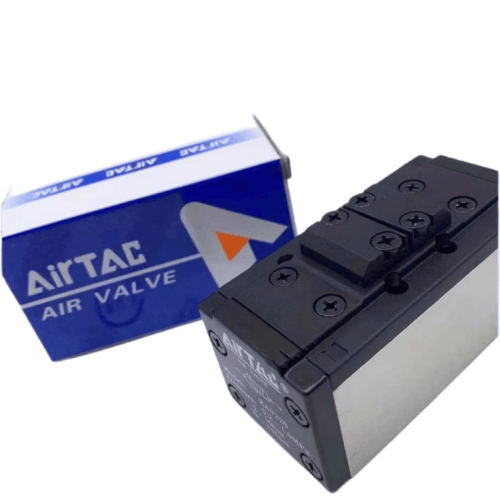

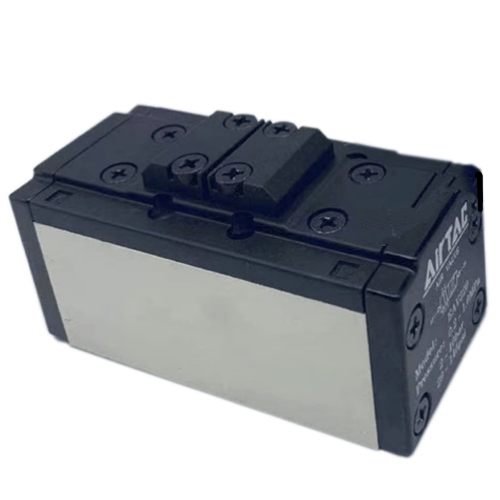

Airtac EAV Standard Pneumatic Control Valve EAV320
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

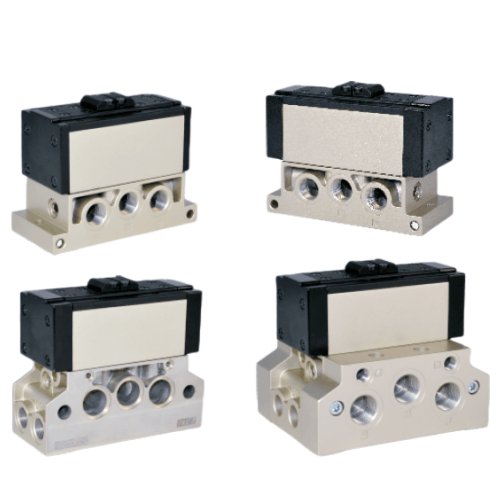

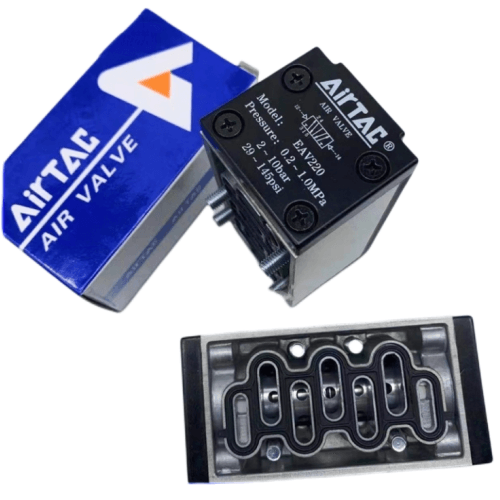

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV320 Standard Pneumatic Control Valve Specifications
- Model: EAV320-02 (Base configuration, other variants available)
- Type: 5/2-way single solenoid pilot-operated
- Port size: G1/4 (ISO standard), optional NPT1/4
- Operating pressure range: 0.2–1.0 MPa (29–145 PSI)
- Voltage options: DC12V/24V, AC110V/220V (±10% tolerance)
- Weight: 650g ±5% (excluding accessories)
- Dimensions: 70mm(L) × 40mm(W) × 90mm(H)
- Valve body material: Anodized aluminum alloy (ISO-AlSi10Mg)
- Seal material: Heat-resistant NBR (Nitrile), optional FKM (Viton)
- Temperature range: -20℃ to 80℃ (NBR), -10℃ to 150℃ (FKM option)
- Response time: ≤50ms (at 0.5MPa)
- Flow capacity: CV 1.8 (Kv 1.56) @ 0.6MPa
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 12mm (minimum engagement recommended)
The EAV320 series features a rugged, modular design with dual-color position indicator (green/red) for visual status confirmation. Its low-power solenoid coil (≤2.2W) incorporates overcurrent protection and surge suppression. The valve operates reliably in high-vibration environments (up to 30m/s²) due to its precision-machined spool assembly. Requires 5μm filtered, lubricated or non-lubricated air (ISO 8573-1 Class 3).
- Industrial automation: Actuator control in CNC tool changers
- Food processing: Pneumatic cylinder sequencing in packaging lines
- Semiconductor manufacturing: Vacuum/pressure chamber controls
- Automotive: Robotic welding fixture clamping systems
- Energy: Hydraulic system pilot stage controls
Installation guidelines:
Mount in any orientation (vertical preferred for drainage). Use flexible tubing
with 10mm clearance from heat sources. For continuous operation above 60℃,
install heat sink (accessory HS-320). Lubricate every 5 million cycles using
ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | EAV320 |
| Pneumatic Control Type | Double Position, Double Air Pilot |
