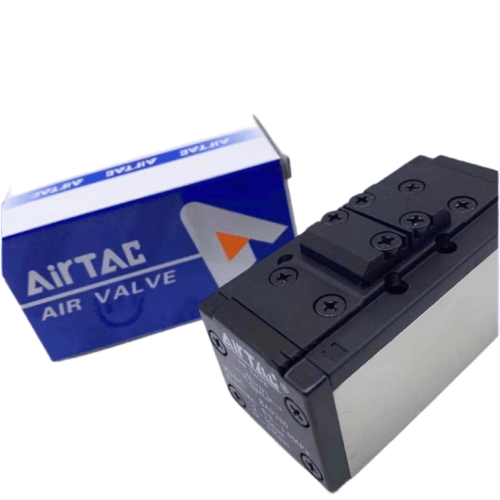

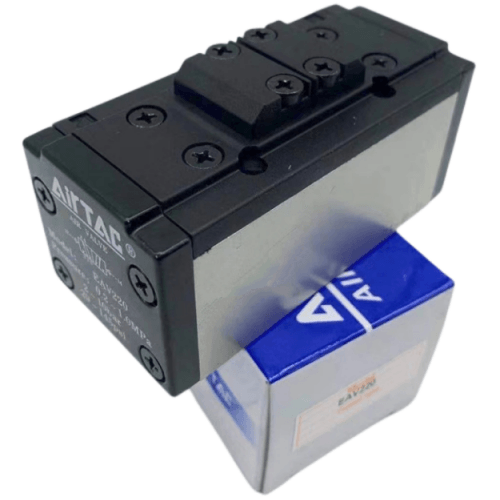

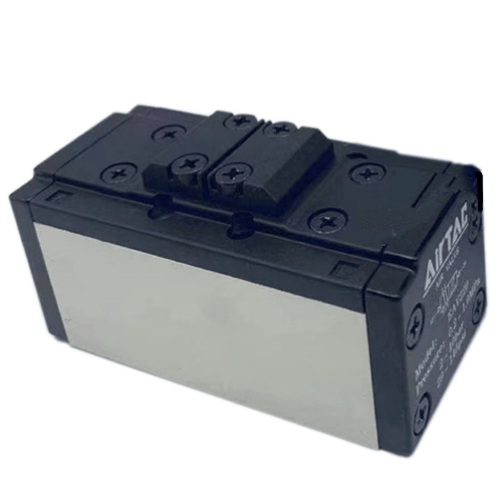

Airtac EAV Standard Pneumatic Control Valve EAV330C
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

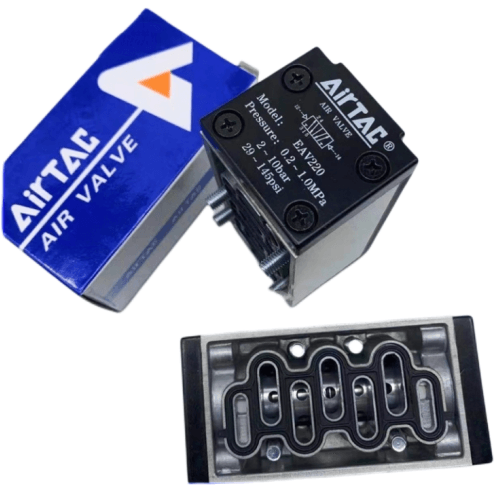

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;

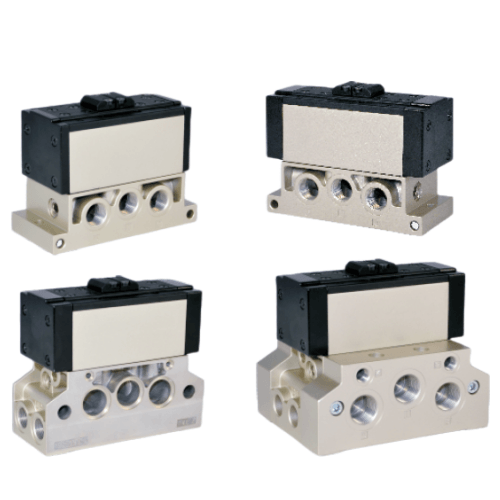

6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV330C Standard Pneumatic Control Valve Specifications
- Model: EAV330C
- Type: 5/3-way closed center (air-piloted operation)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 850 NL/min (ANR)
- Actuation pressure: ≥0.3 MPa
- Valve body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 320g ±5%
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Port thread depth: 12mm
- Response time: ≤50ms
- Protection rating: IP65 (dust-tight, water jet resistant)
High-flow directional control valve with manual override capability, featuring dual-pressure pilot operation for precise mid-position control. The hard anodized surface treatment provides exceptional corrosion resistance in humid environments. Designed for systems requiring stable center-block functionality with minimal pressure drop.
- Clamping fixture positioning in CNC machining centers
- Pneumatic brake control systems for material handling
- Plastic injection molding machine core pulls
- Automated assembly line transfer units
- Textile machinery tension control systems
Installation guidelines:
Maintain horizontal mounting orientation (±15° tolerance). Use locknuts with 15-20 N·m torque for port connections.
Install downstream air filter (5μm minimum) to prevent pilot channel clogging. Allow 20mm clearance for manual override access.
| Property | Property Value |
|---|---|
| sku | EAV330C |
| Pneumatic Control Type | Three-position double air-piloted center closed type |
