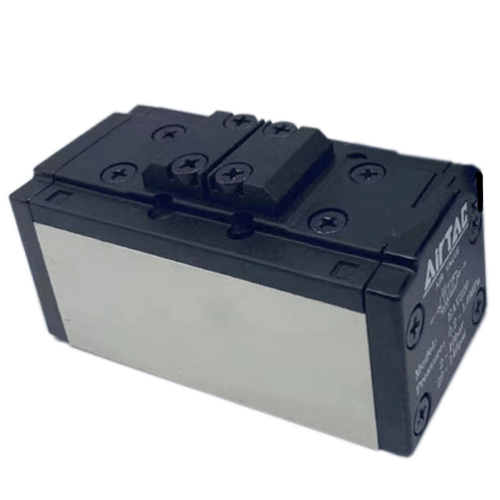

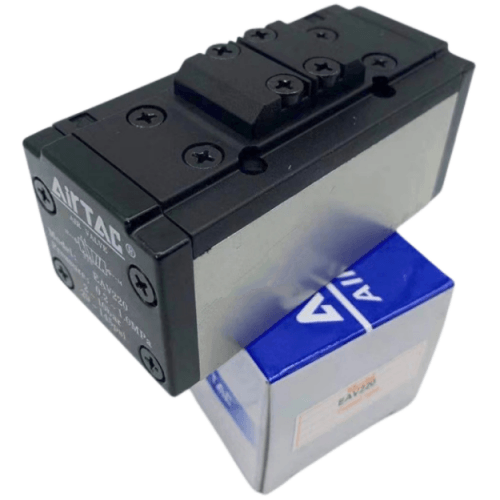

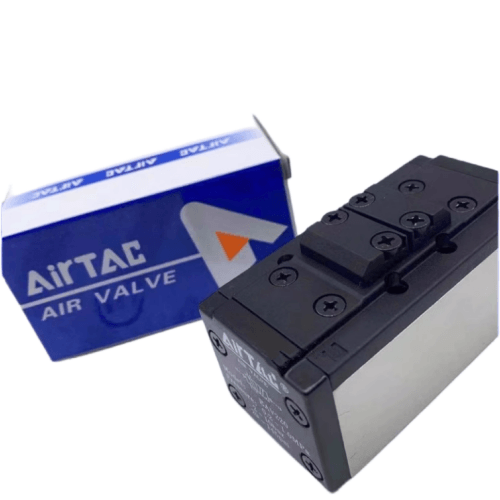

Airtac EAV Standard Pneumatic Control Valve EAV410
$86.04
Regular price
$93.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EAV410
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact and streamlined design with space-efficient construction;
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

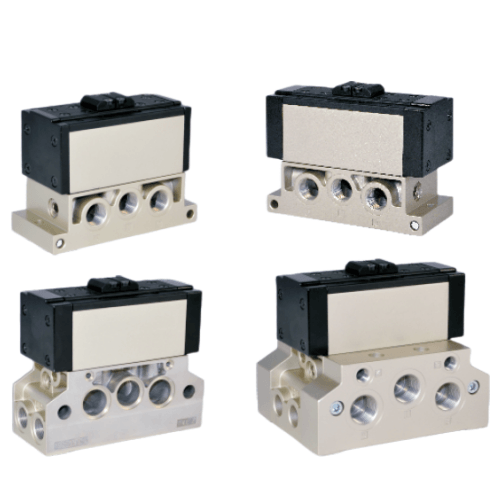

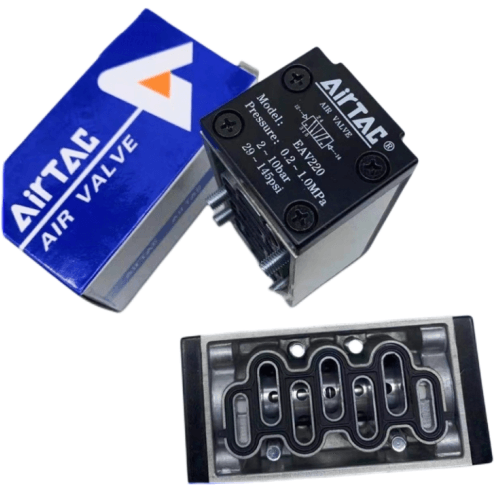

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
Installation note:
Mount with vibration-damping brackets in high-shock environments.
Maintain 0.5-1.0mm alignment tolerance during manifold mounting.
Lubricate pilot ports with ISO VG32 pneumatic oil during maintenance.
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;
5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV410 Standard Pneumatic Control Valve Specifications
- Model: EAV410-XX (XX indicates port configuration variant)
- Type: 5/2-way pneumatic pilot operated (double solenoid)
- Port size: G1/8 (NPT1/8 optional)
- Operating pressure range: 0.2–1.0 MPa
- Control pressure: 0.15–0.7 MPa
- Max flow rate: 750 L/min (ANR)
- Weight: 320g ±5% (without fittings)
- Dimensions: 58mm(L) × 40mm(W) × 80mm(H)
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -10℃ to 80℃ (with silicone seals optional up to 120℃)
- Response time: ≤50ms (at 0.5MPa)
- Port thread depth: 10mm (minimum engagement)
High-flow directional control valve with dual manual override, designed for industrial automation systems requiring rapid cycling. Features wear-resistant spool design with 2 million cycle durability rating. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
Typical Applications:
- Plastic injection molding machine clamp controls
- Automated assembly line actuators
- Foundry equipment pneumatic circuits
- Explosion-proof environments (non-electric control)
- High-cycle packaging machinery
Installation note:
Mount with vibration-damping brackets in high-shock environments.
Maintain 0.5-1.0mm alignment tolerance during manifold mounting.
Lubricate pilot ports with ISO VG32 pneumatic oil during maintenance.
| Property | Property Value |
|---|---|
| sku | EAV410 |
| Pneumatic Control Type | Double position single pneumatic pilot |
