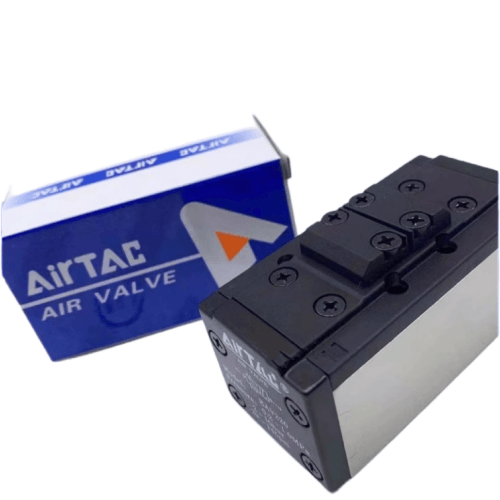

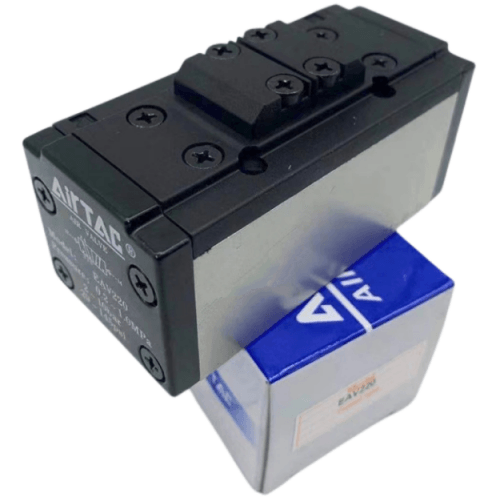

Airtac EAV Standard Pneumatic Control Valve EAV420
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

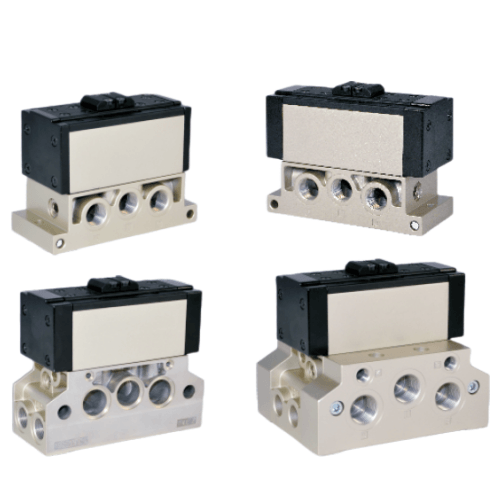

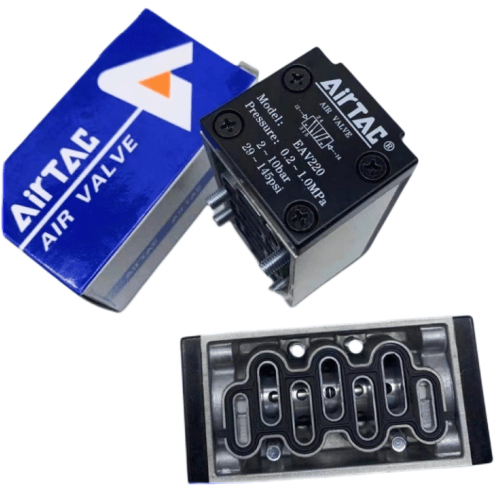

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV420 Standard Pneumatic Control Valve Specifications
- Model: EAV420
- Type: 5/2-way pneumatic pilot-operated (double solenoid)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.2–0.8 MPa
- Max flow capacity: 650 L/min (ANR)
- Response time: ≤50 ms (at 0.5 MPa)
- Seal material: NBR (FKM available for high-temp applications)
- Temperature range: -10℃ to 60℃ (extended to 80℃ with FKM seals)
- Weight: 320g ±5g
- Dimensions: 70mm(L) × 30mm(W) × 50mm(H)
- Port thread depth: 12mm (for secure connection)
- Actuation type: Double electrical/mechanical pilot
- Protection rating: IP65 (dust-tight & protected against water jets)
- Service life: ≥10 million cycles (under rated conditions)

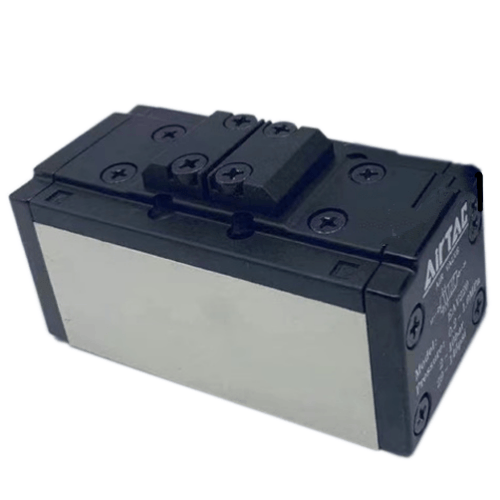

The EAV420 features a robust aluminum alloy body with hardened brass cores, optimized for high-frequency switching in industrial automation. Its low-friction spool design ensures ≤0.1 MPa minimum operating pressure differential. Requires 5μm filtered lubricated air (ISO 8573-1 class 4) for optimal performance.
- Automated assembly line clamping/unclamping systems
- Plastic injection molding machine ejectors
- CNC tool changers with dual-position control
- Textile machinery air cylinder sequencing
- Bottle capping station actuators
Installation protocol:
Mount in vibration-controlled environments using M4 mounting screws.
Maintain ≥15mm clearance below manifold surface for heat dissipation.
Perform monthly lubrication checks in continuous operation scenarios.
Critical note:
Avoid rapid pressure fluctuations >0.2 MPa/sec to prevent spool seizure.
Always install downstream pressure regulators for pulsation-sensitive applications.
| Property | Property Value |
|---|---|
| sku | EAV420 |
| Pneumatic Control Type | Double Position, Double Air Pilot |
